OVERALL
- Total Pieces 1
-
Included Accessories

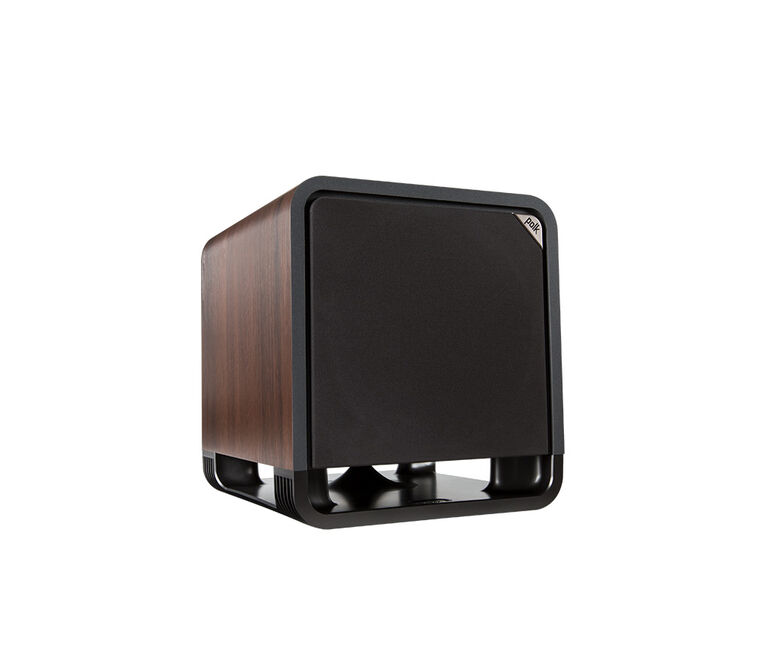

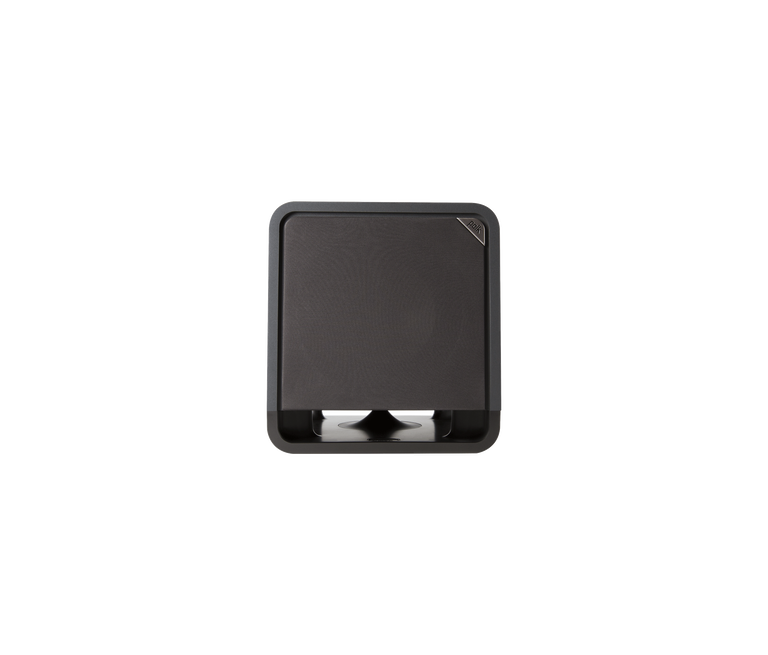

• (1) Removable Speaker Grille
• (1) Power Cord
• (1) Quick Start Guide
• (1) Product Registration Card - Electronics Warranty 3 years
- Drivers Warranty 5 years
- Warranty Yes
- Carton 1

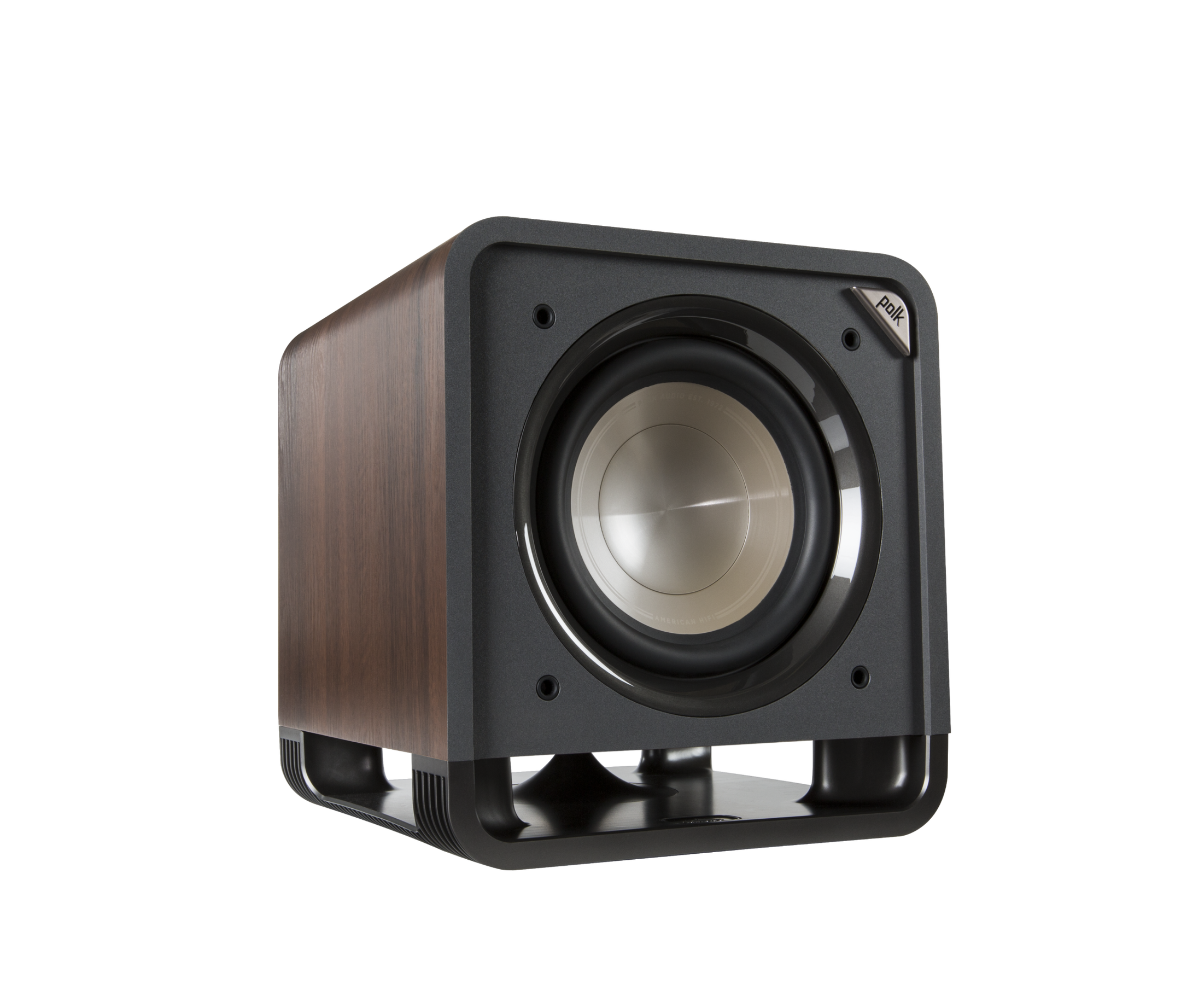

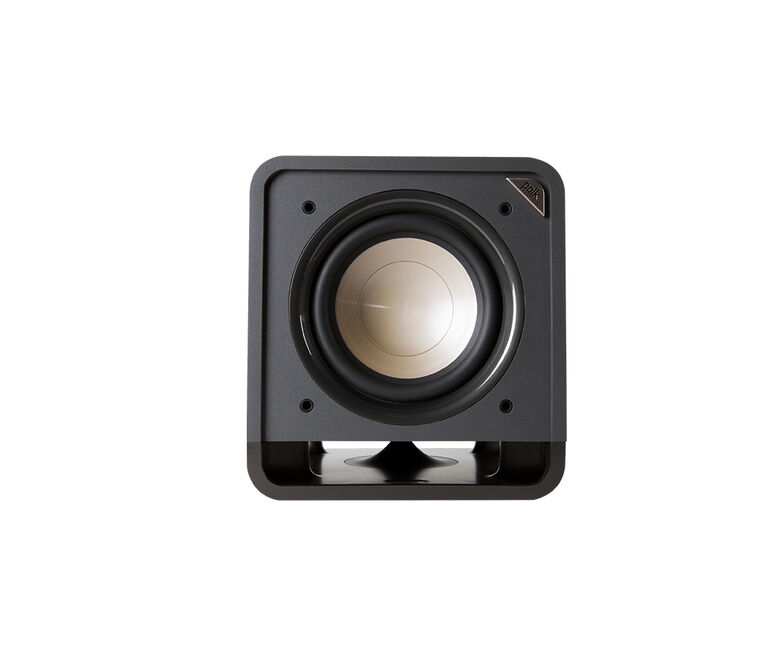

SUBWOOFER
- Total Pieces 1
- Height 16.614" (42.2 cm)
- Width 15.118" (38.4 cm)
- Depth 16.1" (40.89 cm)
- Weight 37.75 lbs (17.12 kg)
- Subwoofer Array Driver Enclosure Type Power Port Bass Vented
- Subwoofer Array Driver Complement • (1) 10" (25.4 cm) d (Round) Polypropylene Dynamic Balance and Klippel optimized driver - Subwoofer
- Peak Power 200 Watts
- Continuous Power 100 Watts
- Total Frequency Response 25 Hz → .180 Hz
- Nominal Impedance 8 ohms
- Lower and Upper -3dB Limits 30 Hz → .120 Hz
- Amplifier Class Class D
-

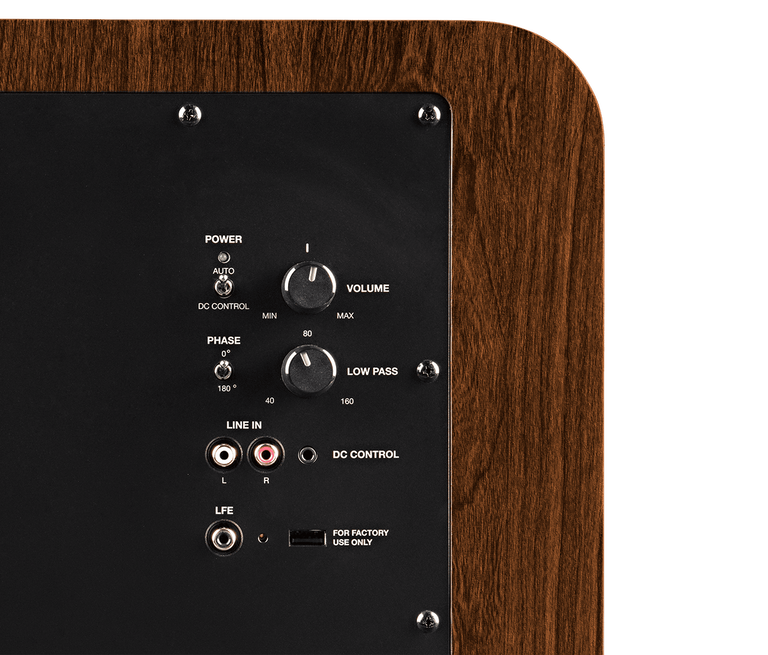

Audio Inputs
• LFE (Unfiltered)
• Stereo Line Level - (2) RCA - IO Button Location Back Panel
-
Adjusts
• Volume +/-
• Low Pass Filter (30Hz-120Hz)
• Phase (0/180°)
• Power: Auto on/off
• Power: DC control (12V trigger) - US Power Cycle Energy Star Compliant with Auto Standby (.5W)
