AVRS960H - AV RECEIVER

Name: AVRS960H - AV RECEIVER
Brand: Denon
SKU: 300015-01-00-101
Price: 849.00 USD
Availability: InStock

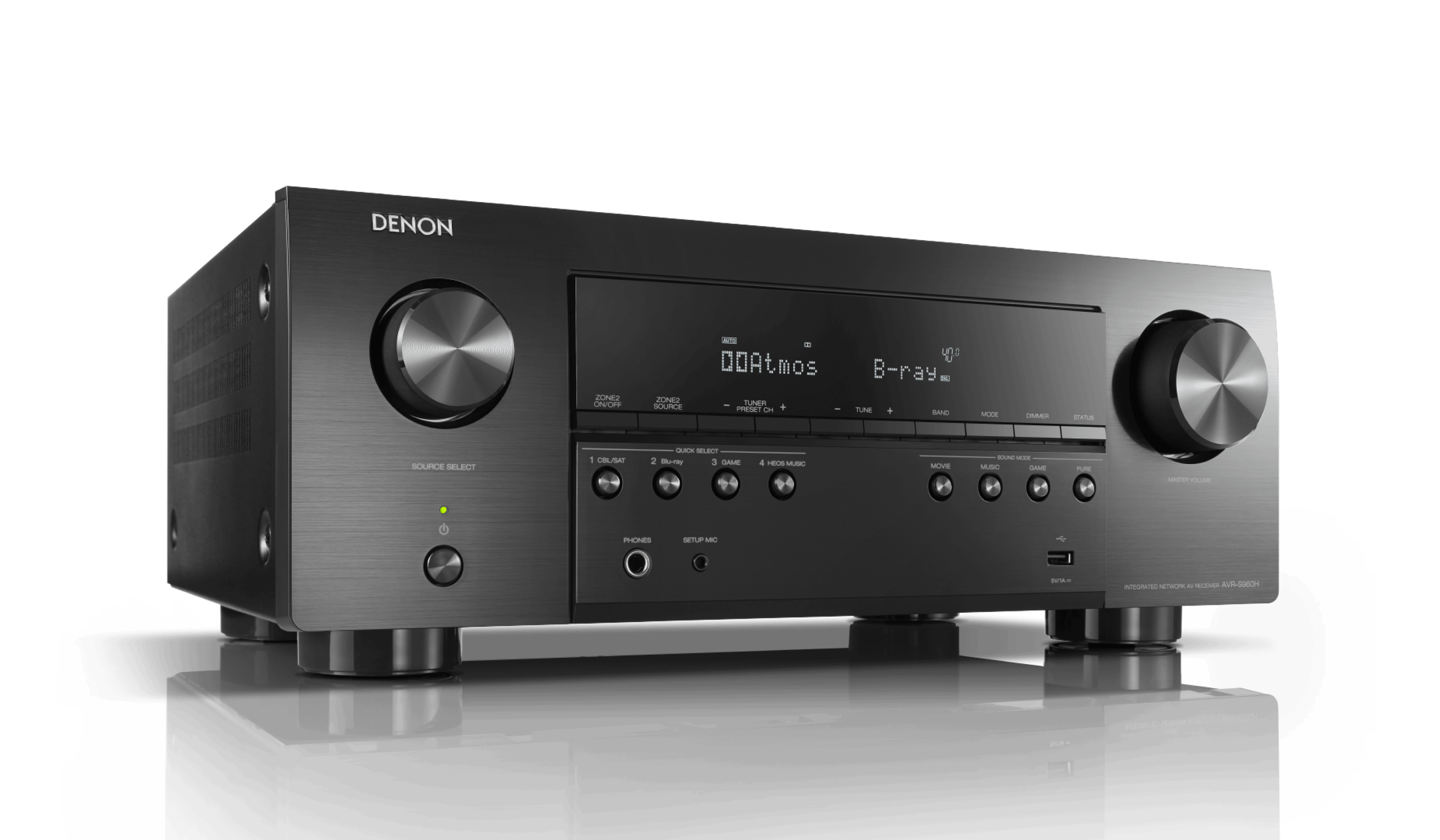

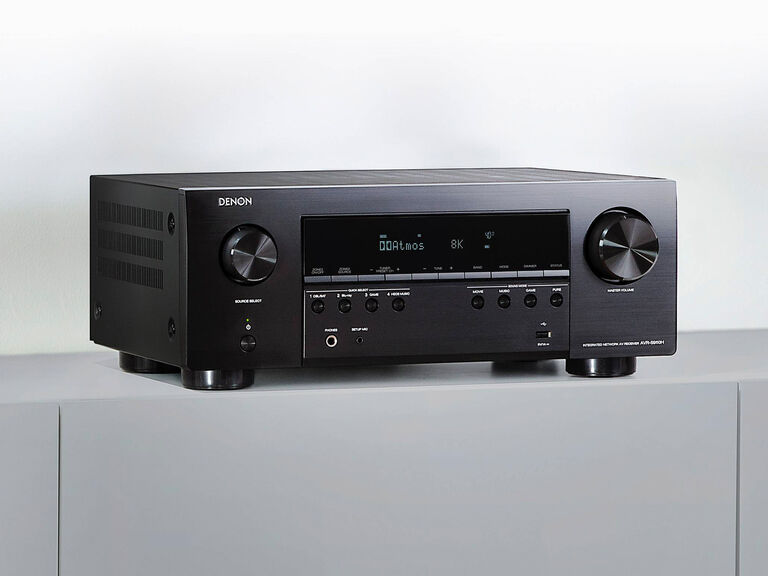

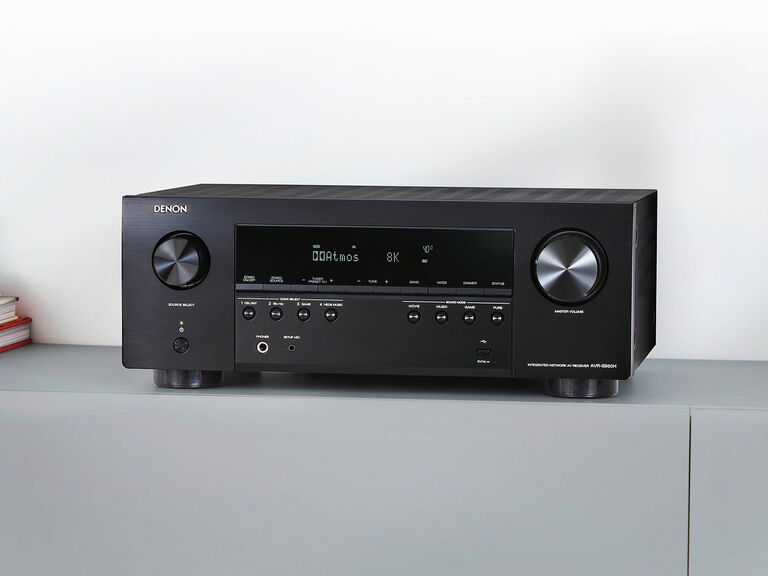

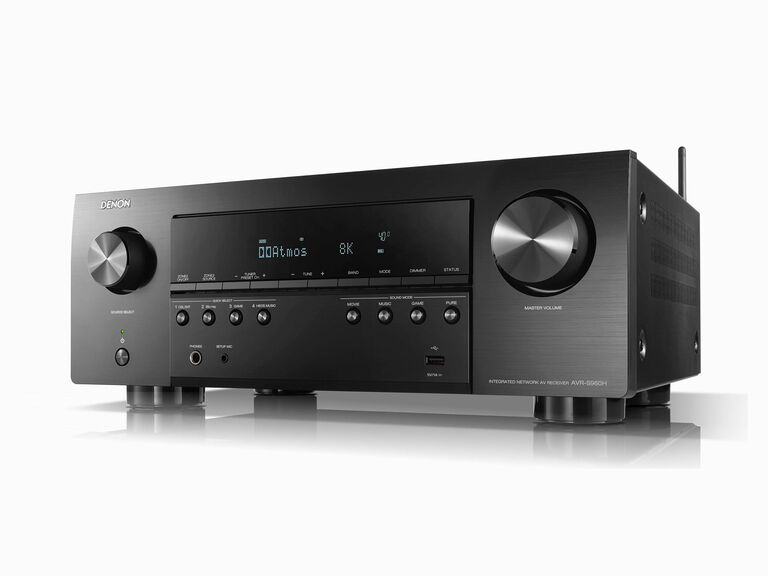

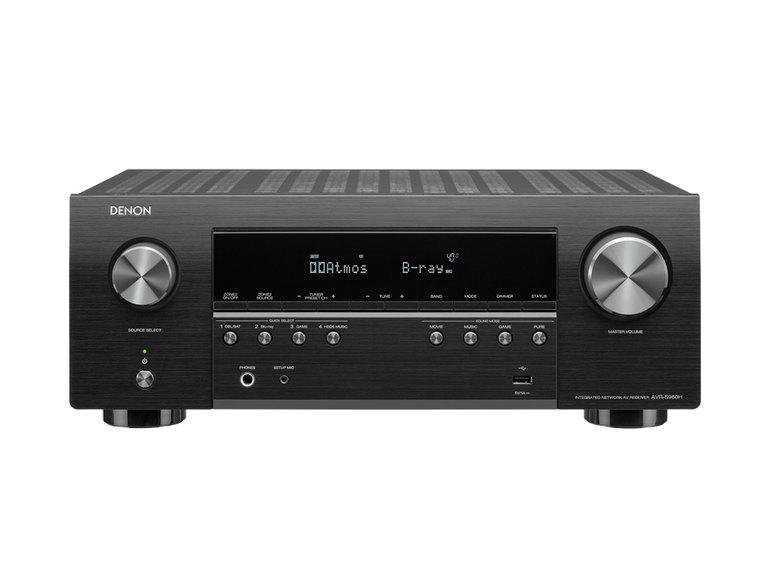

The Denon AVR-S960H 7.2 channel 8K Ultra HD AV receiver with 90W per channel fully supports 3D audio formats like Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X® and DTS Virtual:X™, as well as the latest HDMI specifications such as 8K/60Hz and 4K/120Hz pass-through and upscaling. Features Wi-Fi, Bluetooth, HEOS® Built-in wireless multi-room music streaming and voice control compatibility.

Details & Specifications

Multichannel Surround

DTS HD Master / DTS:X / DTS:X Pro Yes / Yes / No
DTS Neo:X / DTS Neural:X No / Yes
DTS Virtual:X Yes
Dolby TrueHD / Dolby Atmos/Dolby Atmos Height Virtualization Yes / Yes / Yes
Dolby ProLogic Ilz / Dolby Surround No / Yes
Multichannel Stereo Yes
Max Number of Processing (Preamp) Channels 7.1
DTS HD Master / DTS:X / DTS:X Pro Yes / Yes / No
DTS Neo:X / DTS Neural:X No / Yes
DTS Virtual:X Yes
Dolby TrueHD / Dolby Atmos/Dolby Atmos Height Virtualization Yes / Yes / Yes
Dolby ProLogic Ilz / Dolby Surround No / Yes
Multichannel Stereo Yes
Max Number of Processing (Preamp) Channels 7.1
DTS HD Master / DTS:X / DTS:X Pro Yes / Yes / No
DTS Neo:X / DTS Neural:X No / Yes
DTS Virtual:X Yes
Dolby TrueHD / Dolby Atmos/Dolby Atmos Height Virtualization Yes / Yes / Yes
Dolby ProLogic Ilz / Dolby Surround No / Yes
Multichannel Stereo Yes
Max Number of Processing (Preamp) Channels 7.1

Sound Enhancements

Discrete Power Amplifier Yes
Pure Direct Yes
Audyssey MultEQ
Audyssey Dynamic EQ / Dynamic Volume Yes / Yes
Compressed Audio Restorer Yes
Discrete Power Amplifier Yes
Pure Direct Yes
Audyssey MultEQ
Audyssey Dynamic EQ / Dynamic Volume Yes / Yes
Compressed Audio Restorer Yes
Discrete Power Amplifier Yes
Pure Direct Yes
Audyssey MultEQ
Audyssey Dynamic EQ / Dynamic Volume Yes / Yes
Compressed Audio Restorer Yes

Network

Media Server Yes
HEOS Wireless Multi-Room Technology Yes
Bluetooth Re-transmit for Bluetooth headphones Yes
Alexa / Google Voice Assistant / Apple HomePod Yes / Yes / Yes
Lossy Formats: MP3 / WMA / AAC Yes / Yes / Yes
Lossless Formats: FLAC / ALAC / WAV Yes / Yes / Yes
Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 Yes / Yes / Yes
DSD Audio Streaming Yes (2.8/5.6MHz)
FLAC HD 192/24 Yes
WAV 192/24 Yes
ALAC 192/24 Yes
Gapless playback Yes (FLAC, WAV, ALAC ,DSD)
AirPlay Audio Streaming Yes (AirPlay2)
Internet Radio Yes (TuneIn)
Spotify* Yes (connect)
Pandora Yes
SiriusXM Yes
Other Streaming Services Amazon Music HD/
Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix
HEOS App Control Yes
Compatible with Remote APP for Smart Phones Denon 2016 AVR Remote
Compatible with Remote APP for Tablets Android / iOS / Amazon Kindle
Ethernet Ports Yes
Wi-Fi Yes
Bluetooth Yes
Media Server Yes
HEOS Wireless Multi-Room Technology Yes
Bluetooth Re-transmit for Bluetooth headphones Yes
Alexa / Google Voice Assistant / Apple HomePod Yes / Yes / Yes
Lossy Formats: MP3 / WMA / AAC Yes / Yes / Yes
Lossless Formats: FLAC / ALAC / WAV Yes / Yes / Yes
Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 Yes / Yes / Yes
DSD Audio Streaming Yes (2.8/5.6MHz)
FLAC HD 192/24 Yes
WAV 192/24 Yes
ALAC 192/24 Yes
Gapless playback Yes (FLAC, WAV, ALAC ,DSD)
AirPlay Audio Streaming Yes (AirPlay2)
Internet Radio Yes (TuneIn)
Spotify* Yes (connect)
Pandora Yes
SiriusXM Yes
Other Streaming Services Amazon Music HD/
Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix
HEOS App Control Yes
Compatible with Remote APP for Smart Phones Denon 2016 AVR Remote
Compatible with Remote APP for Tablets Android / iOS / Amazon Kindle
Ethernet Ports Yes
Wi-Fi Yes
Bluetooth Yes
Media Server Yes
HEOS Wireless Multi-Room Technology Yes
Bluetooth Re-transmit for Bluetooth headphones Yes
Alexa / Google Voice Assistant / Apple HomePod Yes / Yes / Yes
Lossy Formats: MP3 / WMA / AAC Yes / Yes / Yes
Lossless Formats: FLAC / ALAC / WAV Yes / Yes / Yes
Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 Yes / Yes / Yes
DSD Audio Streaming Yes (2.8/5.6MHz)
FLAC HD 192/24 Yes
WAV 192/24 Yes
ALAC 192/24 Yes
Gapless playback Yes (FLAC, WAV, ALAC ,DSD)
AirPlay Audio Streaming Yes (AirPlay2)
Internet Radio Yes (TuneIn)
Spotify* Yes (connect)
Pandora Yes
SiriusXM Yes
Other Streaming Services Amazon Music HD/
Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix
HEOS App Control Yes
Compatible with Remote APP for Smart Phones Denon 2016 AVR Remote
Compatible with Remote APP for Tablets Android / iOS / Amazon Kindle
Ethernet Ports Yes
Wi-Fi Yes
Bluetooth Yes

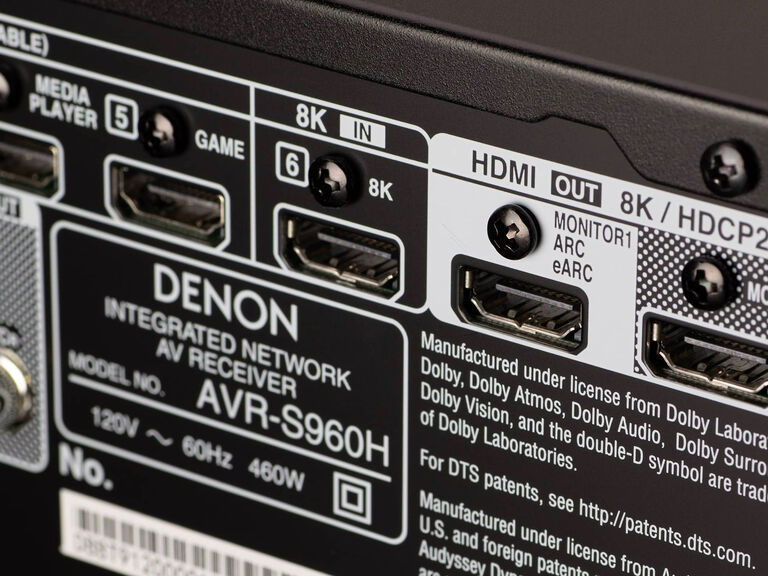

HDMI

HDMI Inputs: Back / Front 6 / No
HDCP2.3 support Yes
HDMI Outputs: Main / Zone 2 / No
HDMI to HDMI Scaling up to 8K 60/50
GUI Overlay on HDMI Yes
UNKNOWN mapping guid: {029143fa-34bc-47ca-8629-cbbfff8bf599} Yes / Yes
UNKNOWN mapping guid: {0f498a75-53eb-48cb-9e7e-75d149050331} Yes / Yes / Yes / Yes / No
Enhanced ARC Yes
UNKNOWN mapping guid: {71e0f993-7831-43de-8d11-db5cb7a1c47e} Yes / Yes / Yes / Yes / Yes (update)
ALLM (Auto Low Latency Mode) Pass-through for gaming Yes
UNKNOWN mapping guid: {d18a5301-c3f0-402e-972b-872b7cc78a67} Yes (update) / Yes (update) / Yes (update)
3D Signal Pass-through Yes
8K signal pass-through / scaling / GUI overlay Yes / Yes / Yes
4K Signal Pass-through / Scaling / GUI Overlay Yes / Yes / Yes
HDMI pass-though in standby mode Yes
Picture Adjust / Noise Reduction Yes / Yes
CEC Yes
Audio Return Channel Yes
Auto LipSync Yes
HDMI Inputs: Back / Front 6 / No
HDCP2.3 support Yes
HDMI Outputs: Main / Zone 2 / No
HDMI to HDMI Scaling up to 8K 60/50
GUI Overlay on HDMI Yes
UNKNOWN mapping guid: {029143fa-34bc-47ca-8629-cbbfff8bf599} Yes / Yes
UNKNOWN mapping guid: {0f498a75-53eb-48cb-9e7e-75d149050331} Yes / Yes / Yes / Yes / No
Enhanced ARC Yes
UNKNOWN mapping guid: {71e0f993-7831-43de-8d11-db5cb7a1c47e} Yes / Yes / Yes / Yes / Yes (update)
ALLM (Auto Low Latency Mode) Pass-through for gaming Yes
UNKNOWN mapping guid: {d18a5301-c3f0-402e-972b-872b7cc78a67} Yes (update) / Yes (update) / Yes (update)
3D Signal Pass-through Yes
8K signal pass-through / scaling / GUI overlay Yes / Yes / Yes
4K Signal Pass-through / Scaling / GUI Overlay Yes / Yes / Yes
HDMI pass-though in standby mode Yes
Picture Adjust / Noise Reduction Yes / Yes
CEC Yes
Audio Return Channel Yes
Auto LipSync Yes
HDMI Inputs: Back / Front 6 / No
HDCP2.3 support Yes
HDMI Outputs: Main / Zone 2 / No
HDMI to HDMI Scaling up to 8K 60/50
GUI Overlay on HDMI Yes
UNKNOWN mapping guid: {029143fa-34bc-47ca-8629-cbbfff8bf599} Yes / Yes
UNKNOWN mapping guid: {0f498a75-53eb-48cb-9e7e-75d149050331} Yes / Yes / Yes / Yes / No
Enhanced ARC Yes
UNKNOWN mapping guid: {71e0f993-7831-43de-8d11-db5cb7a1c47e} Yes / Yes / Yes / Yes / Yes (update)
ALLM (Auto Low Latency Mode) Pass-through for gaming Yes
UNKNOWN mapping guid: {d18a5301-c3f0-402e-972b-872b7cc78a67} Yes (update) / Yes (update) / Yes (update)
3D Signal Pass-through Yes
8K signal pass-through / scaling / GUI overlay Yes / Yes / Yes
4K Signal Pass-through / Scaling / GUI Overlay Yes / Yes / Yes
HDMI pass-though in standby mode Yes
Picture Adjust / Noise Reduction Yes / Yes
CEC Yes
Audio Return Channel Yes
Auto LipSync Yes

Multi-room CI

Multiroom zones 2
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog Yes (2ch) / Yes (2ch) / Yes / Yes
Zone Audio Output: Speaker / Preout Yes / No
IP Control / RS232 Control / Web Control / App Control Yes / No / Yes / Yes
Remote In / Out No / No
HDMI Diagnostics Yes
Multiroom zones 2
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog Yes (2ch) / Yes (2ch) / Yes / Yes
Zone Audio Output: Speaker / Preout Yes / No
IP Control / RS232 Control / Web Control / App Control Yes / No / Yes / Yes
Remote In / Out No / No
HDMI Diagnostics Yes
Multiroom zones 2
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog Yes (2ch) / Yes (2ch) / Yes / Yes
Zone Audio Output: Speaker / Preout Yes / No
IP Control / RS232 Control / Web Control / App Control Yes / No / Yes / Yes
Remote In / Out No / No
HDMI Diagnostics Yes

Others

Auto Speaker Setup by Microphone Audyssey MultEQ
FL Display 1 line
Graphic User Interface - GUI Advanced
GUI Languages 3
Setup Assistent Yes
Quick Select Plus / Quick Select Yes / No
Firmware Update by: Network / USB Yes / Yes
Variable Cross Over Yes
Optimized Bass Redirection Yes
ECO Mode Yes
Auto Power Off Yes
Sleep Timer Yes
Auto Speaker Setup by Microphone Audyssey MultEQ
FL Display 1 line
Graphic User Interface - GUI Advanced
GUI Languages 3
Setup Assistent Yes
Quick Select Plus / Quick Select Yes / No
Firmware Update by: Network / USB Yes / Yes
Variable Cross Over Yes
Optimized Bass Redirection Yes
ECO Mode Yes
Auto Power Off Yes
Sleep Timer Yes
Auto Speaker Setup by Microphone Audyssey MultEQ
FL Display 1 line
Graphic User Interface - GUI Advanced
GUI Languages 3
Setup Assistent Yes
Quick Select Plus / Quick Select Yes / No
Firmware Update by: Network / USB Yes / Yes
Variable Cross Over Yes
Optimized Bass Redirection Yes
ECO Mode Yes
Auto Power Off Yes
Sleep Timer Yes

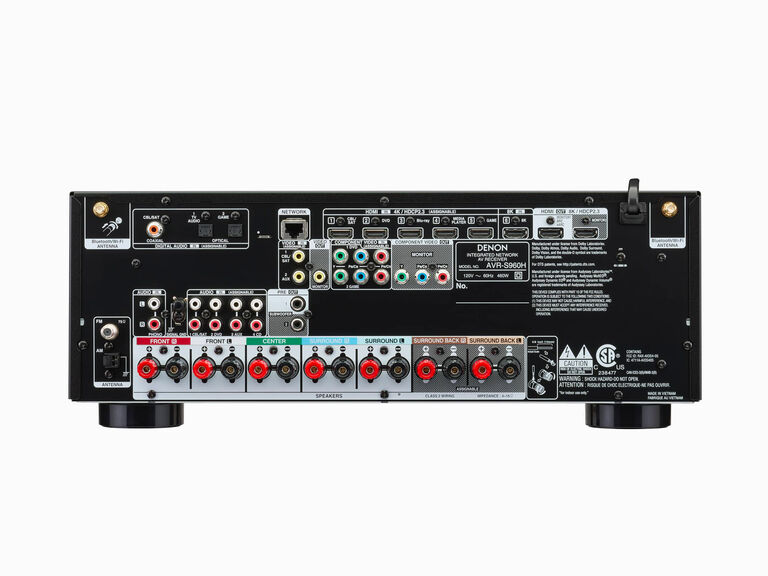

Inputs Outputs

Composite In / Out 2 / 1
Component In / Out 2 / 2
HDMI In / Out 6 / 2
Multi-room Video Out: Video / HDMI No / No
Analogue In/out 4 / No
Phono (MM) In Yes
Digital In: Optical / Coaxial 2 / 1
Multi-room Out: Analog / Digital No / No
Multichannel Pre-out Yes (0.2)
Subwoofer Out 2
Speaker Terminal: Gold Plated Screw / Regular Screw No / Yes
Number of Speaker Terminals 7
Multi-Room Speaker Terminal assignable
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB No / No / No / No / Yes
USB Audio / Made for iPod / Made for iPhone Yes / No / No
AM/FM Tuner Yes
Composite In / Out 2 / 1
Component In / Out 2 / 2
HDMI In / Out 6 / 2
Multi-room Video Out: Video / HDMI No / No
Analogue In/out 4 / No
Phono (MM) In Yes
Digital In: Optical / Coaxial 2 / 1
Multi-room Out: Analog / Digital No / No
Multichannel Pre-out Yes (0.2)
Subwoofer Out 2
Speaker Terminal: Gold Plated Screw / Regular Screw No / Yes
Number of Speaker Terminals 7
Multi-Room Speaker Terminal assignable
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB No / No / No / No / Yes
USB Audio / Made for iPod / Made for iPhone Yes / No / No
AM/FM Tuner Yes
Composite In / Out 2 / 1
Component In / Out 2 / 2
HDMI In / Out 6 / 2
Multi-room Video Out: Video / HDMI No / No
Analogue In/out 4 / No
Phono (MM) In Yes
Digital In: Optical / Coaxial 2 / 1
Multi-room Out: Analog / Digital No / No
Multichannel Pre-out Yes (0.2)
Subwoofer Out 2
Speaker Terminal: Gold Plated Screw / Regular Screw No / Yes
Number of Speaker Terminals 7
Multi-Room Speaker Terminal assignable
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB No / No / No / No / Yes
USB Audio / Made for iPod / Made for iPhone Yes / No / No
AM/FM Tuner Yes

Specifications

Number of Power Amps 7
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) 90 W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 125 W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 185 W
Number of Power Amps 7
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) 90 W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 125 W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 185 W
Number of Power Amps 7
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) 90 W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 125 W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 185 W

General

System Remote Control RC-1239
Pre-programmed / Learnable / LCD Display No / No / No
Power Consumption in W 500
Power Consumption No-Sound (ECO On / Off) in W 35 W / 75 W
Standby Consumption in W 0.1
CEC Standby Consumption in W 0.5
Network Standby Consumption in W 2.7
Maximum Dimensions
Antenna: Horizontal: (W x D x H) in Inches
Antenna: Vertical: (W x D x H) in Inches
W/O Antenna: (W x D x H) in Inches TBD
17.1 x 13.4 x 6.6
( 17.1 x 13.4 x 9.3 )
【 17.1 x 13.0 x 6.6 】
Carton Dimensions (Packaging) (W x D x H) in Inches) 20.5 x 16.9 x 9.6 (in) (TBD)
Weight in LBS 21.0 (TBD)
Weight in LBS (Packaging) 25.4 (TBD)
Power Supply AC 120 V, 60 Hz
Speaker impedance 4 -16Ω/ohms
UNKNOWN mapping guid: {ba7181cf-2a47-4299-9741-2a1224a751a0} 200 mV
UNKNOWN mapping guid: {a97fc604-f9df-4896-81e2-daf54d013518} 10 Hz - 100 kHz — +1, –3 dB (Direct mode)
UNKNOWN mapping guid: {e250bc02-0727-46bb-848c-47c1af8cf203} 100 dB (IHF-A weighted, Direct mode)
UNKNOWN mapping guid: {e549e849-2a65-4234-9c93-2948a54d62d1} 87.5 - 107.9 MHz
UNKNOWN mapping guid: {8c4f5f87-a3d4-4656-8b5e-6414d3d6bf8f} 520 kHz – 1710 kHz
System Remote Control RC-1239
Pre-programmed / Learnable / LCD Display No / No / No
Power Consumption in W 500
Power Consumption No-Sound (ECO On / Off) in W 35 W / 75 W
Standby Consumption in W 0.1
CEC Standby Consumption in W 0.5
Network Standby Consumption in W 2.7
Maximum Dimensions
Antenna: Horizontal: (W x D x H) in Inches
Antenna: Vertical: (W x D x H) in Inches
W/O Antenna: (W x D x H) in Inches TBD
17.1 x 13.4 x 6.6
( 17.1 x 13.4 x 9.3 )
【 17.1 x 13.0 x 6.6 】
Carton Dimensions (Packaging) (W x D x H) in Inches) 20.5 x 16.9 x 9.6 (in) (TBD)
Weight in LBS 21.0 (TBD)
Weight in LBS (Packaging) 25.4 (TBD)
Power Supply AC 120 V, 60 Hz
Speaker impedance 4 -16Ω/ohms
UNKNOWN mapping guid: {ba7181cf-2a47-4299-9741-2a1224a751a0} 200 mV
UNKNOWN mapping guid: {a97fc604-f9df-4896-81e2-daf54d013518} 10 Hz - 100 kHz — +1, –3 dB (Direct mode)
UNKNOWN mapping guid: {e250bc02-0727-46bb-848c-47c1af8cf203} 100 dB (IHF-A weighted, Direct mode)
UNKNOWN mapping guid: {e549e849-2a65-4234-9c93-2948a54d62d1} 87.5 - 107.9 MHz
UNKNOWN mapping guid: {8c4f5f87-a3d4-4656-8b5e-6414d3d6bf8f} 520 kHz – 1710 kHz
System Remote Control RC-1239
Pre-programmed / Learnable / LCD Display No / No / No
Power Consumption in W 500
Power Consumption No-Sound (ECO On / Off) in W 35 W / 75 W
Standby Consumption in W 0.1
CEC Standby Consumption in W 0.5
Network Standby Consumption in W 2.7
Maximum Dimensions
Antenna: Horizontal: (W x D x H) in Inches
Antenna: Vertical: (W x D x H) in Inches
W/O Antenna: (W x D x H) in Inches TBD
17.1 x 13.4 x 6.6
( 17.1 x 13.4 x 9.3 )
【 17.1 x 13.0 x 6.6 】
Carton Dimensions (Packaging) (W x D x H) in Inches) 20.5 x 16.9 x 9.6 (in) (TBD)
Weight in LBS 21.0 (TBD)
Weight in LBS (Packaging) 25.4 (TBD)
Power Supply AC 120 V, 60 Hz
Speaker impedance 4 -16Ω/ohms
UNKNOWN mapping guid: {ba7181cf-2a47-4299-9741-2a1224a751a0} 200 mV
UNKNOWN mapping guid: {a97fc604-f9df-4896-81e2-daf54d013518} 10 Hz - 100 kHz — +1, –3 dB (Direct mode)
UNKNOWN mapping guid: {e250bc02-0727-46bb-848c-47c1af8cf203} 100 dB (IHF-A weighted, Direct mode)
UNKNOWN mapping guid: {e549e849-2a65-4234-9c93-2948a54d62d1} 87.5 - 107.9 MHz
UNKNOWN mapping guid: {8c4f5f87-a3d4-4656-8b5e-6414d3d6bf8f} 520 kHz – 1710 kHz
