OVERALL
- Total Pieces 2
-
Included Accessories
• (1) Grille
• (1) Removable Base - Cabinet Warranty 5 years
- Drivers Warranty 5 years
- Original Purchaser Only Yes
- Carton 1 11.25" (28.58 cm) h x 11" (27.94 cm) w x 11" (27.94 cm) d - 10.5 lbs (4.76 kg)
MULTI-APPLICATION LOUDSPEAKER
- Qty Included Pair
- Availability US
-
Orientation
• Vertical
• Horizontal - Height 10" (25.4 cm)
- Width 7" (17.78 cm)
- Depth 4" (10.16 cm)
- Weight 4 lbs (1.81 kg)
-

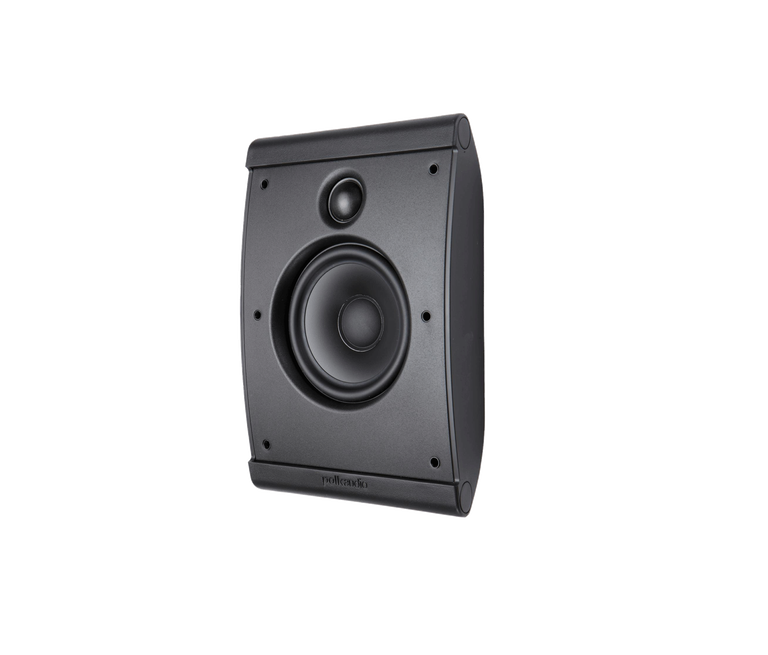

Front Array Driver Complement
• (1) 4.5" (11.43 cm) d (Round) - Mid/Woofer
• (1) 1" (2.54 cm) d (Round) - Tweeter - Total Frequency Response 80 Hz → 25 Hz
- Nominal Impedance 8 ohms
- Sensitivity 1 watt 1 meter 89 dB
- Lower and Upper -3dB Limits 100 Hz → 22 Hz

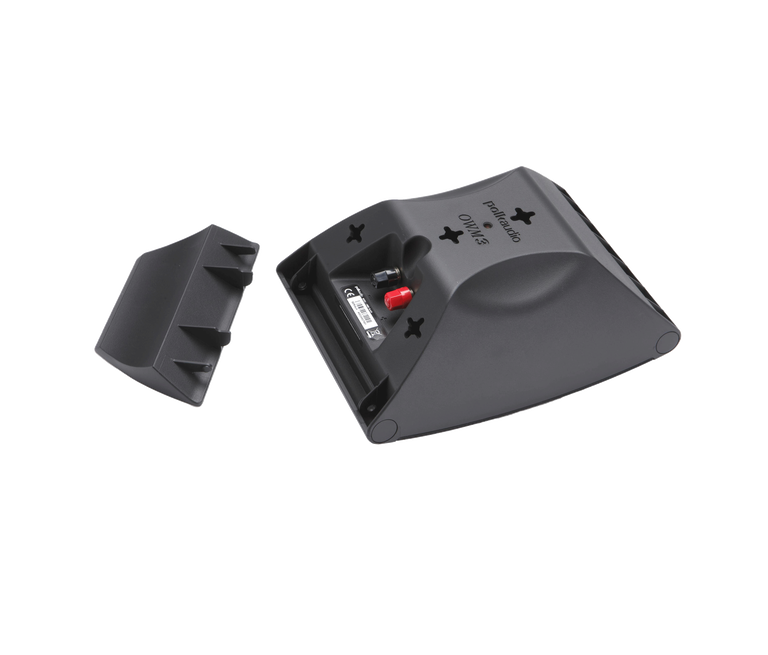

- Mounting Type Keyhole Hanger
-
Available Orientations
• Vertical
• Horizontal -
Mounting Location
• Back of Speaker
• Bottom of Speaker
Near: Bottom, Center - Mounting Type 1/4" 20 Threaded Insert
-
Available Orientations
• Horizontal
• Vertical -
Mounting Location
• Back of Speaker
• Bottom of Speaker
Near: Bottom, Center - Mounting Type Keyhole Hanger
- Available Orientations Horizontal
- Mounting Location Back of Speaker - Near: Center
- Mounting Type Keyhole Hanger
-
Available Orientations
• Horizontal
• Vertical -
Mounting Location
• Back of Speaker
• Bottom of Speaker
Near: Bottom, Center - Recommended Amplifier Power Per Channel 20 watts → 100 watts
- Audio Inputs -
- Speaker Inputs (1) 5-way Binding Posts - Gold-Plated
