OVERALL
- Total Pieces 8
-
Included Accessories
• (1) Cleaning cloth

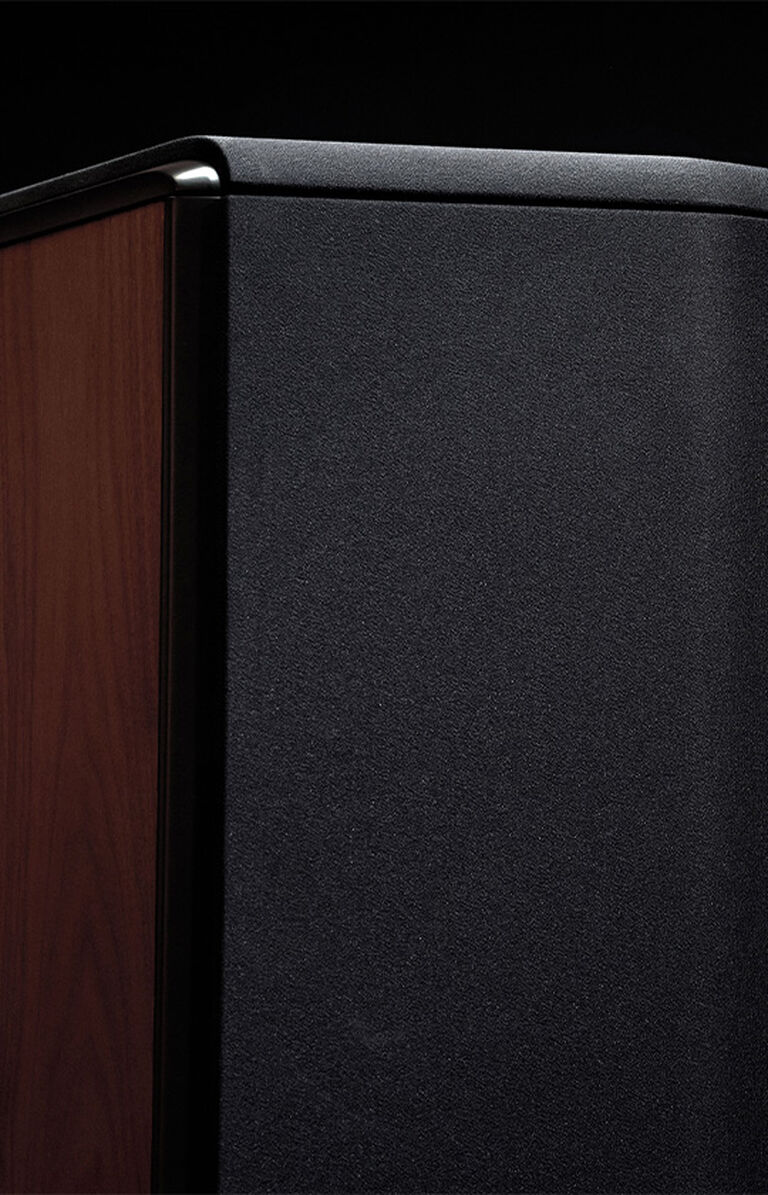

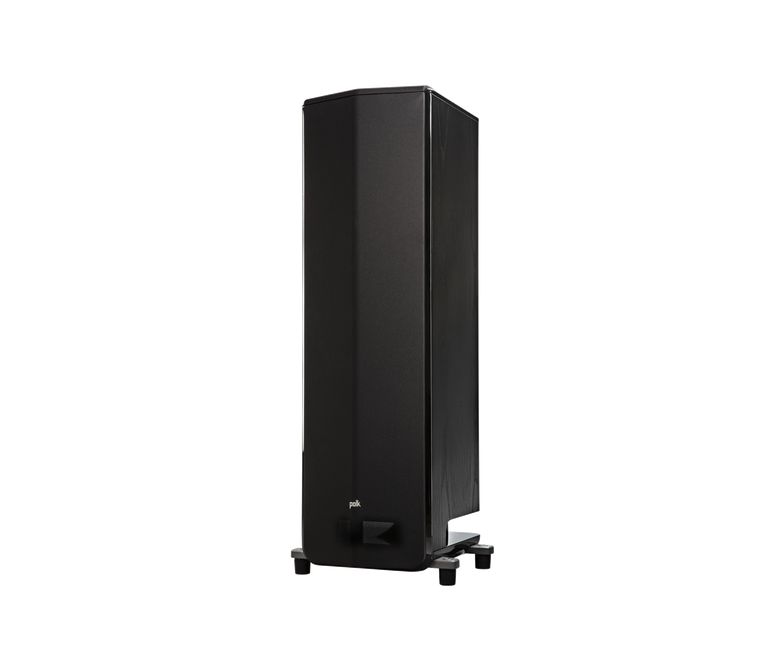

• (1) Removable Magnetic Grille
• (4) Rubber Carpet-Spike Covers

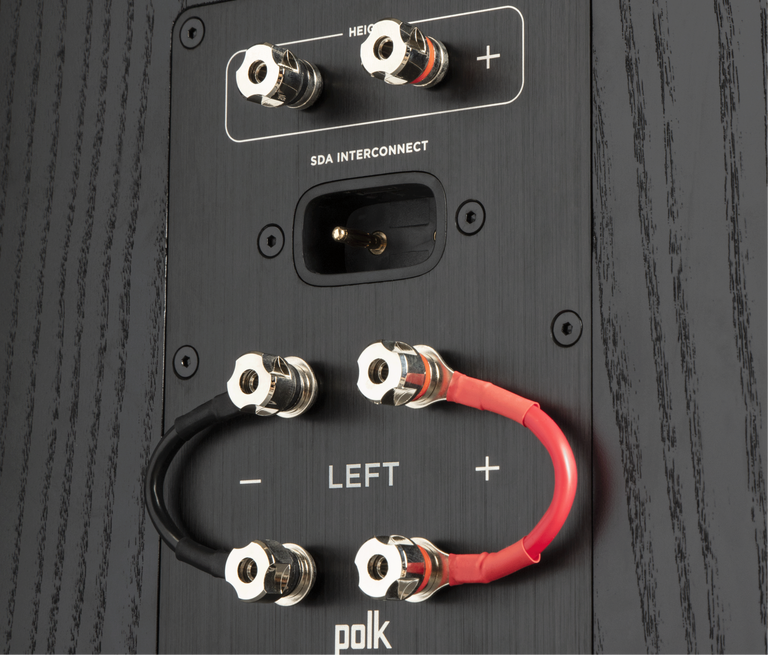

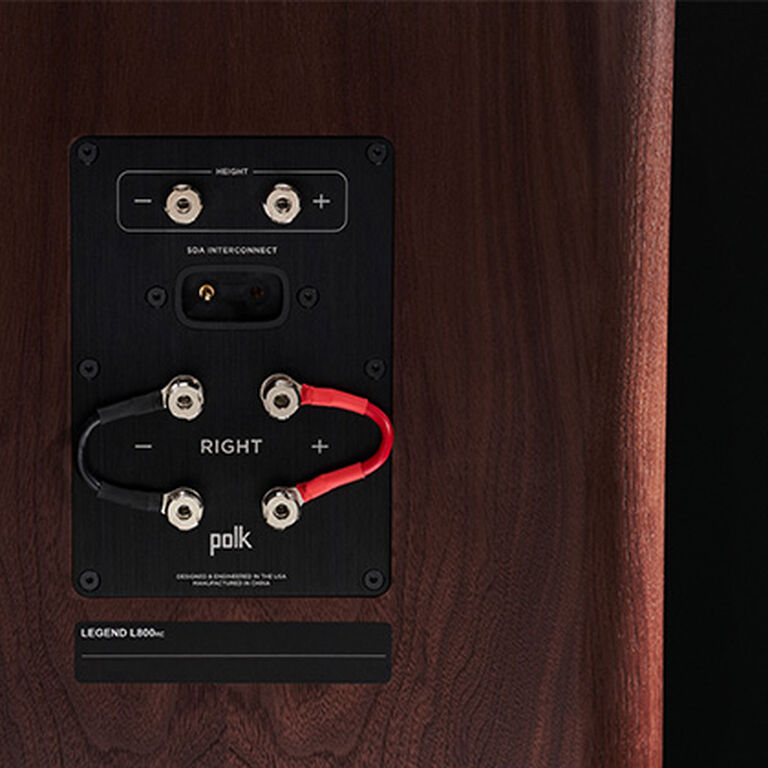

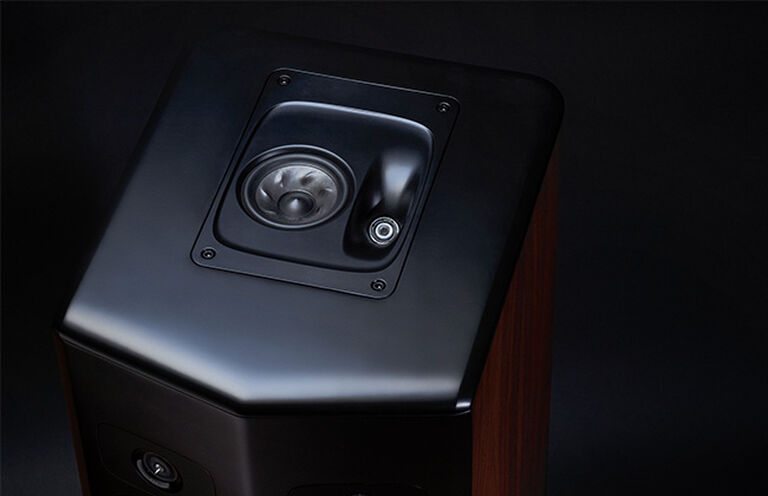

• (1) SDA Interconnect Cable (12 ft) - Optional Accessories • (1) L900 Height Module Speaker - Drops into top of tower for Dolby Atmos and DTS:X height channels
- Carton 1 151 lbs (68.5 kg)

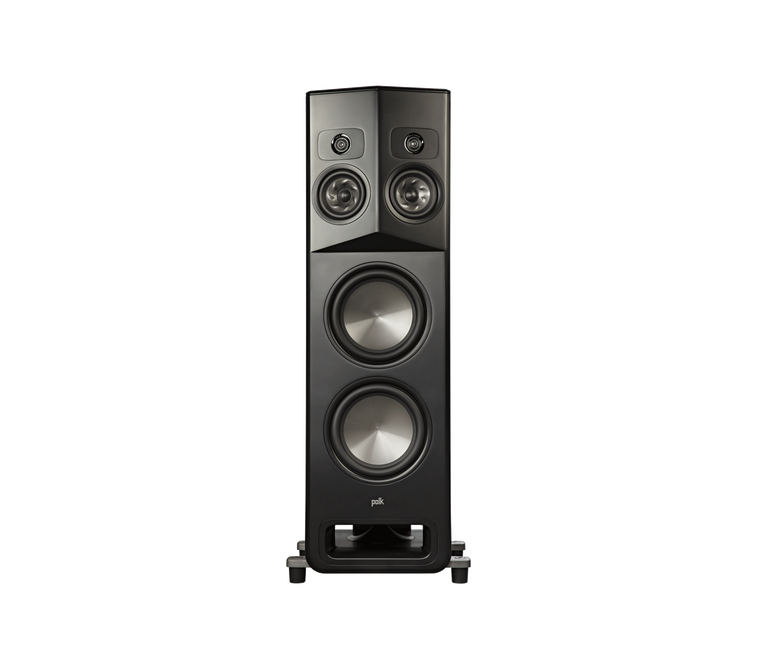

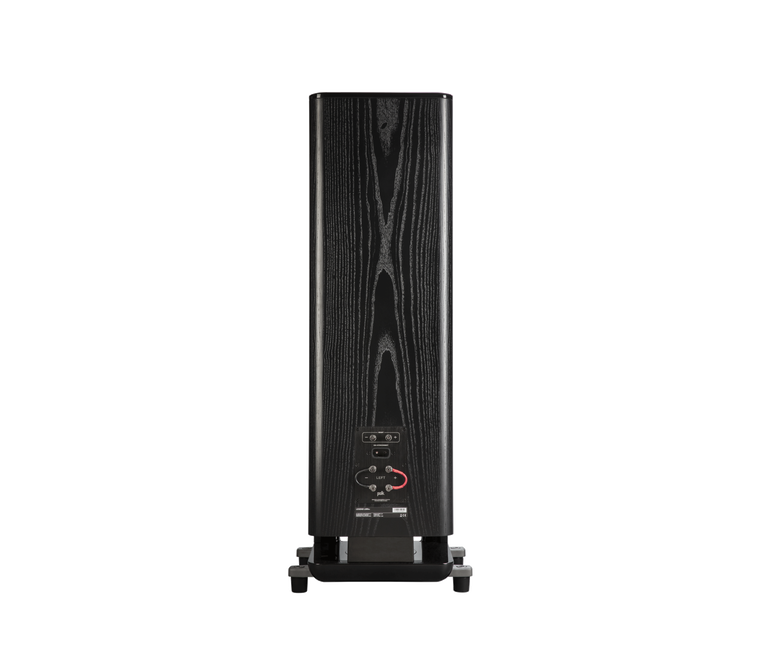

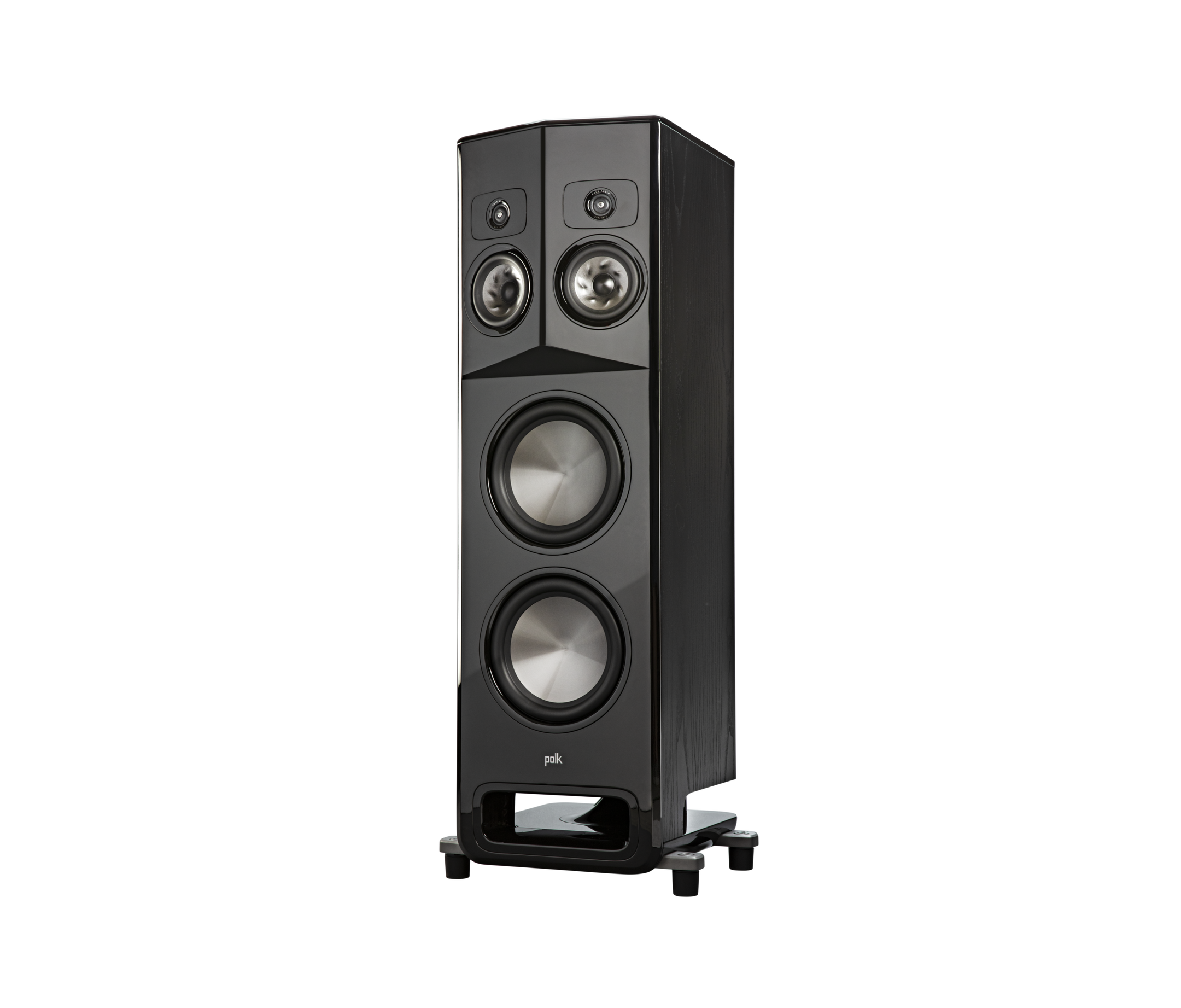

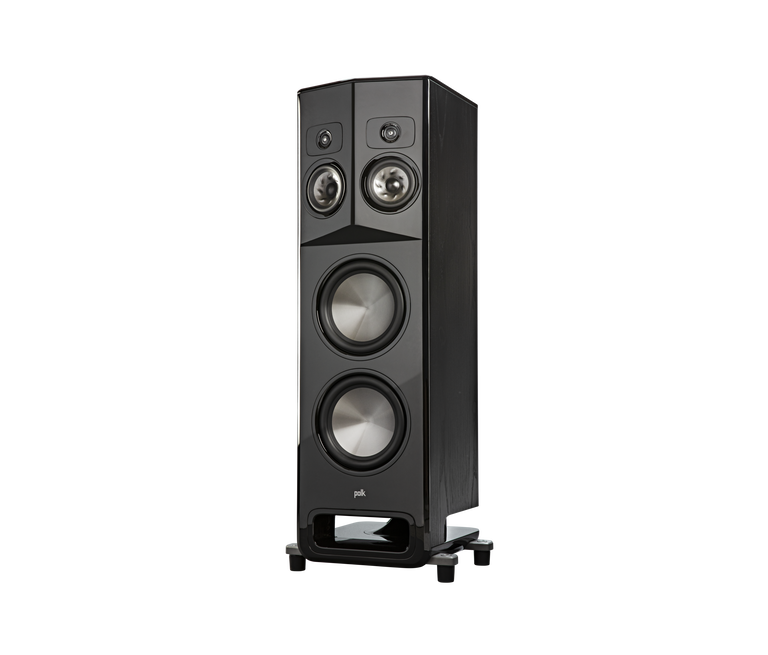

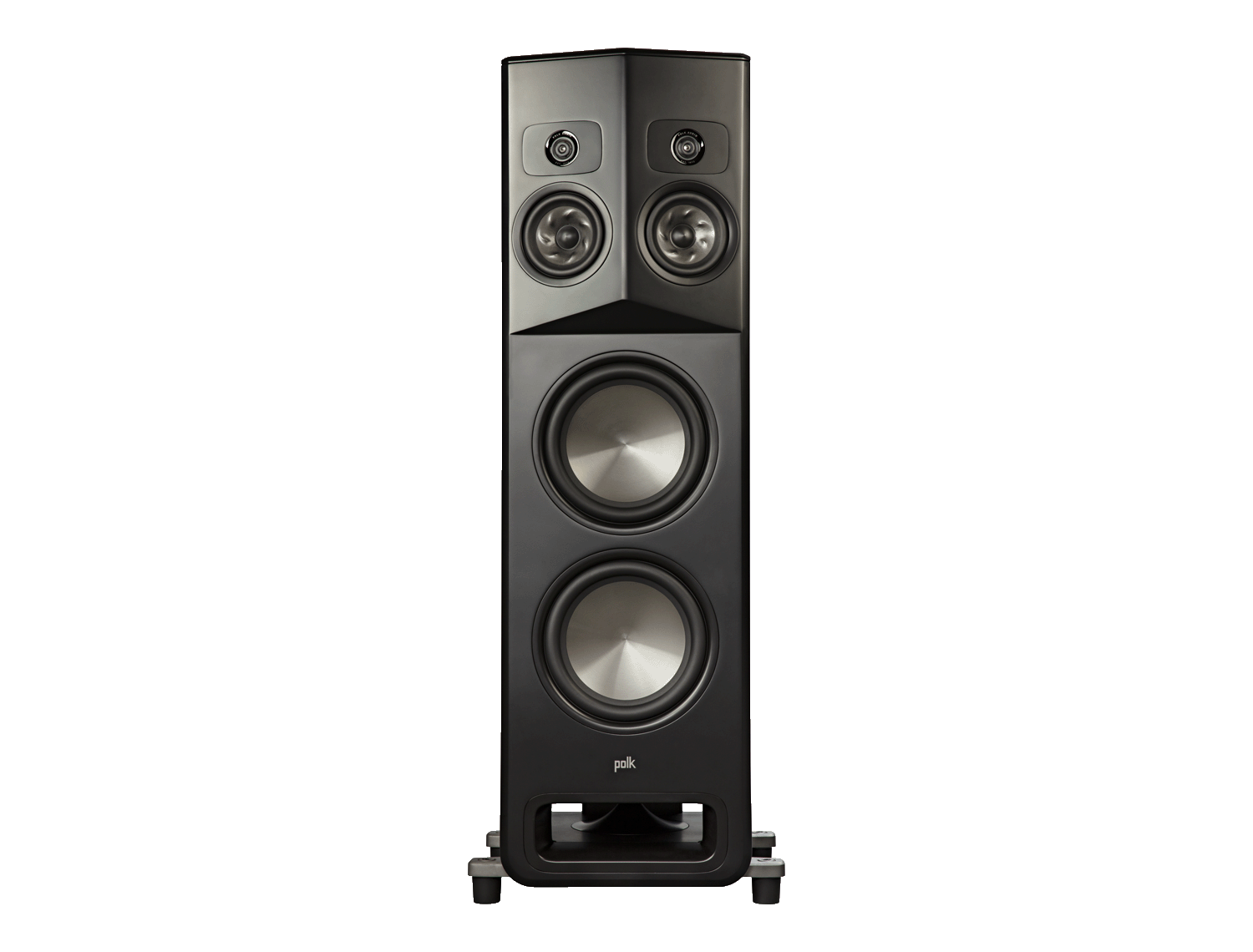

L800 Floorstanding Tower Speaker
- Total Pieces 1
- Height 48.6" (123.45 cm)
- Width 17.94" (45.56 cm)
- Depth 17.38" (44.14 cm)
- Weight 118 lbs (53.5 kg)

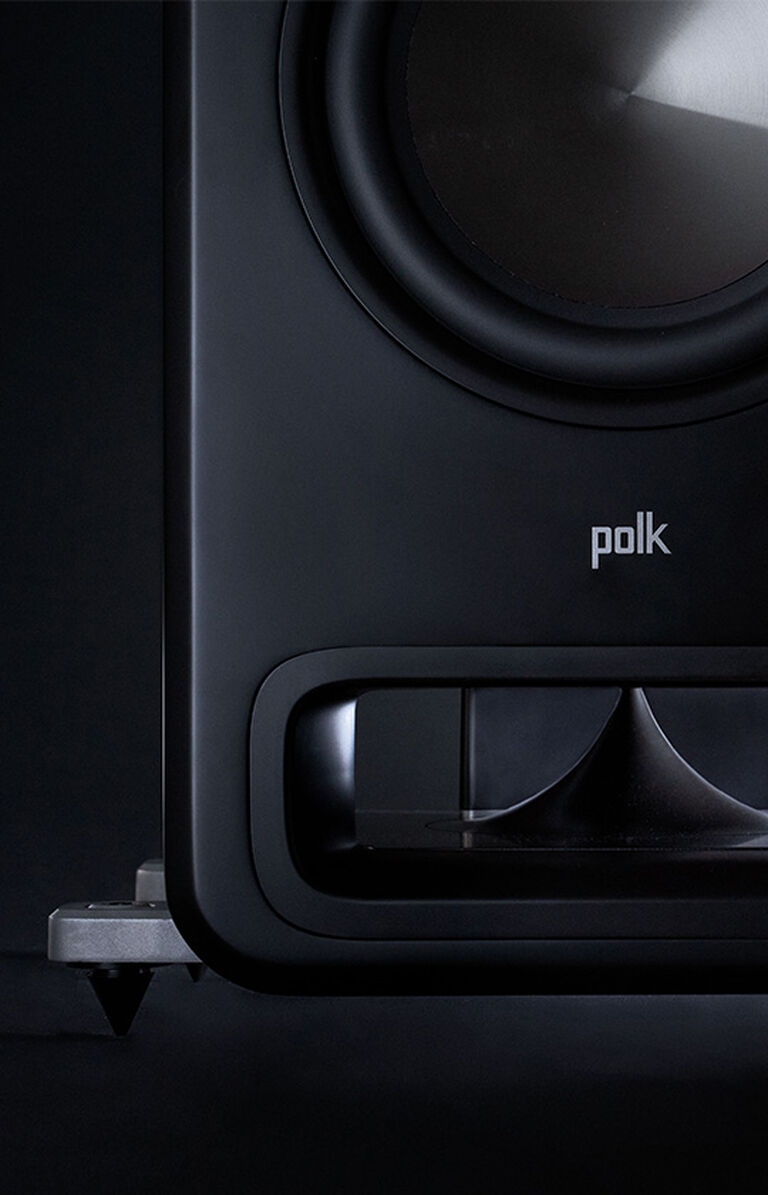

- Driver Enclosure Type Power Port Bass Vented with Sealed Midrange
-
Driver Complement

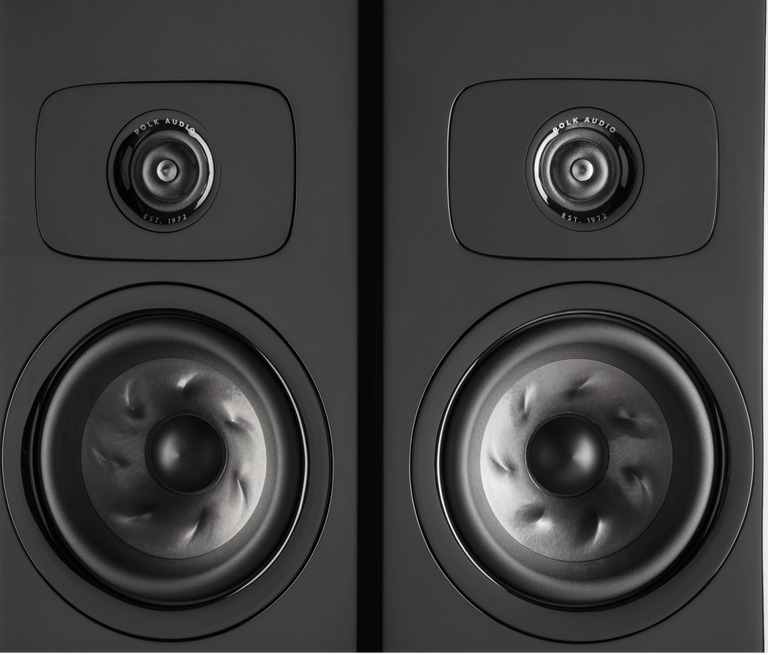

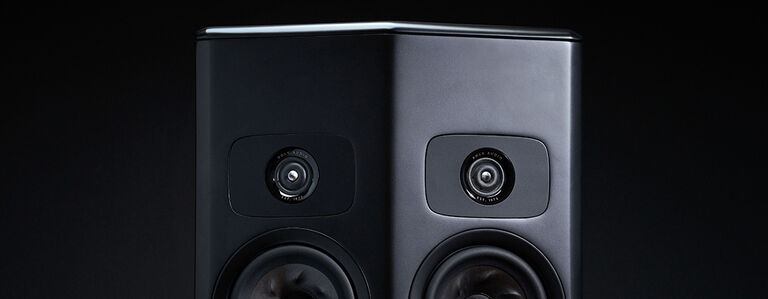

• (2) 1" (2.54 cm) d (Round) Pinnacle Ring Radiator - Tweeter
• (2) 5.25" (13.34 cm) d (Round) Turbine Cone - Midrange
• (2) 10" (25.4 cm) d (Round) - Mid/Woofer - Recommended Amplifier Power Setting 100W
- Total Frequency Response 24 Hz → 50,000 Hz
- Nominal Impedance Range 2.8 ohms → 4 ohms
- Sensitivity (1 watt @ 1 meter) 87 dB
- Lower and Upper -3dB Limits 32 Hz → 38,000 Hz
- Type 3-way Orth Crossover (x2)
- Midrange Woofer Crossover Frequency 370 Hz
- Tweeter Midrange Crossover Frequency 2800 Hz
- Power Handling per channel 25 watts → 300 watts
- A/V Receiver Crossover Settings Large (0 Hz)
- Peak Power Handling 300 watts
- Recommended Amplifier Power Per Channel 25 watts → 300 watts
WARRANTY
- Total Pieces 1
- Included Upon Purchase 5 years (non-transferable)
