General
-
Unit (W x D x H)
434 x 410 x 135mm
17.1 x 16.1 x 5.3in -
Cabinet Size (W x D x H)
434 x 374 x 135mm
17.1 x 14.7 x 5.3in -
Net weight
17.6kg
38.8lb -
Packaging Dimensions (W x D x H)
548 x 520 x 249mm
21.6 x 20.5 x 9.8in -
Packaging gross weight
20.4kg
45lb - Carton Color 2 Color
- Cushion / Packing 4 Separate / Sheet
- Panel Color SP / BK
- Front (Center) Panel Aluminum
- Side cover SECC with 4 straight emboss
- Side screw SP: Nickel / BK: Black
- Rear Panel SECC t1.0mm
- Chassis Material SECC t1.2mm
- Bottom Layer Single
- Volume Knob Aluminum
- Input Selector Aluminum
- Bass/Treble/Balance/ Phono Sel knobs Aluminum
- Power button Aluminum
- Other knob/button (LOUDNESS, SOURCE DIRECT etc) Mold (Source Direct,Analog Mode,MM/MC)
-
Foot
ABS resin with rigid rib
w/Hot stamp
(H : 20mm) - Heatsink for Power Amplifier Extruded Aluminum
Specifications
-
Rated Output Power
70W + 70W
(8ohm,20Hz-20kHz,THD0.07%)
140W + 140W
(4ohm, 1kHz, THD0.7%) -
Speaker Impedance
A or B : 4 ~ 16ohm
A + B : 8 ~ 16ohm - Frequency Response 5Hz - 100kHz (0~ -3dB)
-
Total Harmonic Distortion
0.01 % (Rated output: –3 dB),
8 ohm/ohms, 1 kHz - Dumping Factor 100 and over
-
Input Sensitivity: Phono input
MM: 2.5 mV / 47 kohm
MC: 200 - RIAA Deviation 20 Hz - 20 kHz ±0.5 dB (MM/MC)
-
Phono Maximum Input
MM : 130mV / 1kHz
MC : 10mV / 1kHz - Input Sensitivity: CD/LINE/RECORDER 125 mV / 19 kohm
- Input Sensitivity: Power Amp input 0.85V / 47kohm (EXT. PRE)
-
Signal to Noise Ratio
PHONO (MM): (89dB)
PHONO (MC): (74dB)
CD: (107dB) -

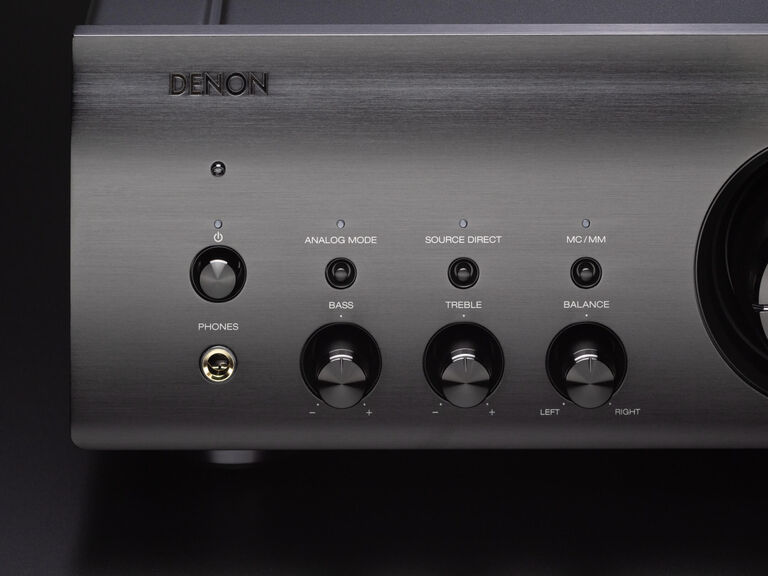

Tone Control
BASS : 100Hz ±8dB
TREBLE : 10kHz ±8dB - Power Consumption 295W
-
at Standby
0.2W TV autoplay off
0.4W TV autoplay on
Audio Feature
-
Power Amplifier Circuit
New UHC-MOS
Single Push Pull (7) - Power Trans Dual El Core
-
Pre Amplifier Circuit
Variable Gain Preamplifier
(OP AMP) -

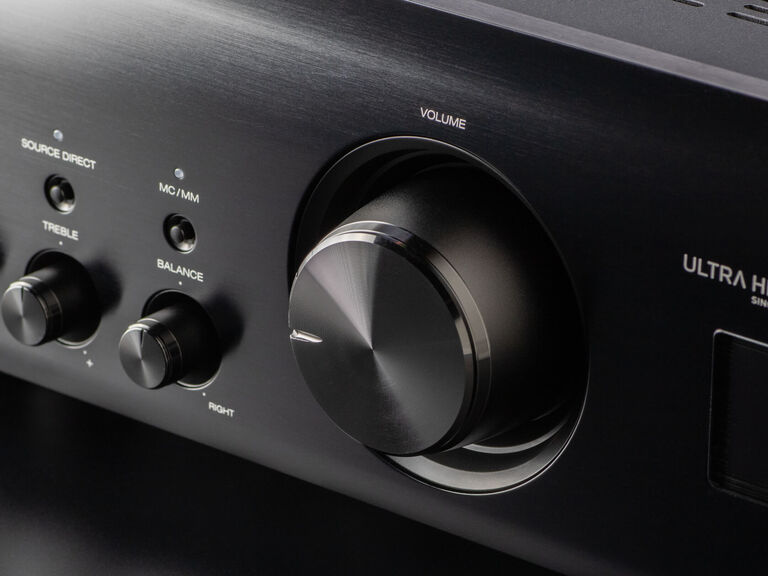

Volume
Electric
(MUSES 72323) - Bass / Treble / Mid / Balance Control Yes / Yes / No / Yes
-
Type of Tone Control
Electric
Controlled by Potentiometer - Headphone Circuit Use Poweramplifier
- Source Direct Yes
- Analog Amp Mode Yes (button on front panel)
- Other 70
- DAC Circuit PCM1795
- Digital Filter Fixed
- Digital Processing Advanced AL32 Processing Plus
- DAC Master Clock Design (Doesn’t Support Network Playback) Yes
- Asyncronous mode (for USB-B input) yes
-
Isolator (for USB-B input)
Yes
Full Isolation

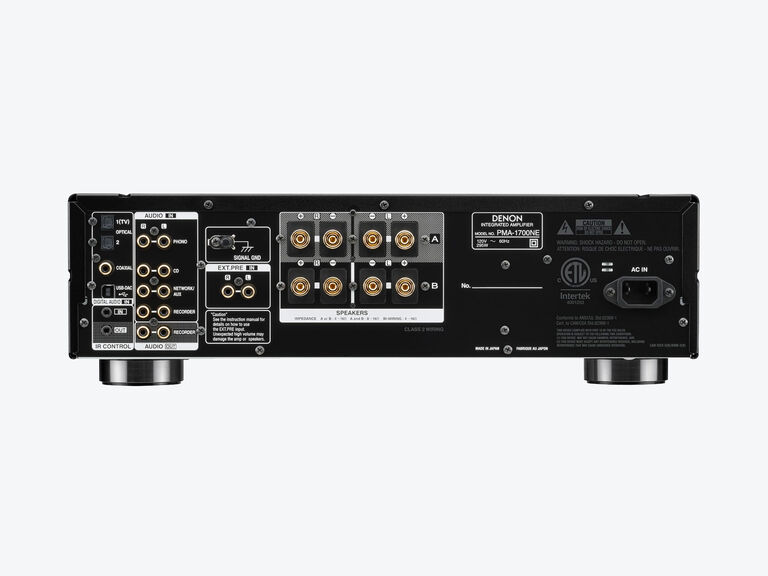

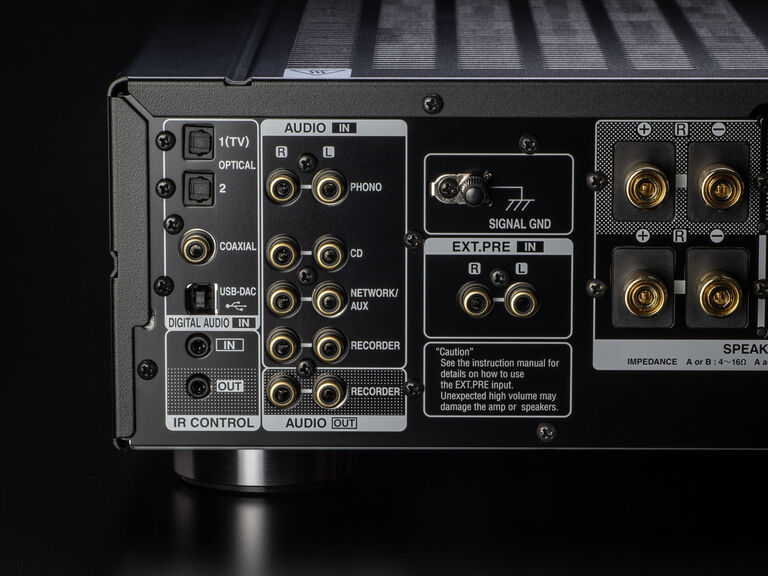

Connectivity
-
Phono Input
Yes (MM / MC)
*default=MM - Analog Input (include Phono) / REC Out (RCA) 4/1 (PHONO/ CD/ AUX/ RECORDER)
- Optical input / output (Maximum Support) 2 / 0 (192kHz/24bit)
- Coaxial input / output (Maximum Support) 1 / 0 (192kHz/24bit)
- Ext. Pre Input (Power Amp Direct) Yes(Ext.Pre)

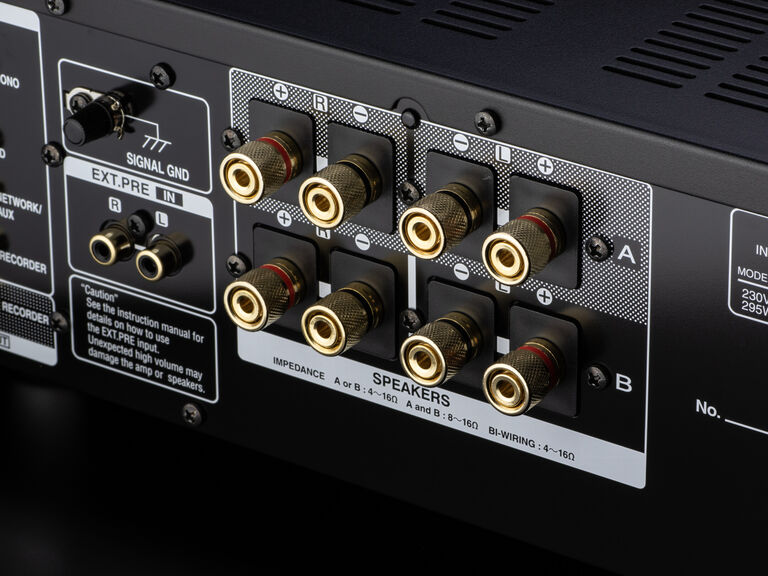

- 2 sets of Speaker Output Yes (Bi-wiring)
- Speaker Terminal Gold Plated
-
Headphone Output
1
(Turn off the speaker when inserting headphone) - Remote Control Bus Terminal Yes (mini)
- AC Inlet Yes
- Wi-Fi No
- HEOS No
- USB B (USB DAC) 1 (Rear)
-
Module or Main Device
New XMOS
(XU210-256-TQ128 ) - PCM Sample Rate ~384kHz/32bit
- DSD Audio Streaming (DoP) ~11.2MHz
-
Roon Certificaton
Yes(Roon Tested)
TBD
Control
-
Remote Controller
System Remote
(w/CD Player Control) -
Unit control (Button)
Push Switch: 1
POWER
Tact Switch : 3
ANALOG MODE, SOURCE DIRECT, MM / MC -
Unit control (Knob)
5
VOLUME, INPUT SELECTOR, BASS, TREBLE, BALANCE -
LED
POWER: 1 Red / Green
ANALOG MODE: 1 Green
SOURCE DIRECT: 1 Green
MM / MC :1 Green -
Front Panel Display
Yes
(OLED 128 x 100 dot)
MXS4036-A - Display Language Alphabetical
- Dimmer for Front Display Bright / Dim / Dark / Off
- Control with App via Network Player (Use Remote Control Bus) Yes
- TV Auto-play (Opt/Coax digital-in detecter) Yes
- Last Function Memory Yes
- Auto Standby Mode Yes
-
Owner's Manual
Web Manual
E2: (English, German, French, Italian, Dutch, Spanish,
Swedish, Polish, Russian)
E3: (English, French, Spanish)
E1C: (Simplified Chinese)
JP: (Japanese)
Paper
JP: (Japanese) -
Quick Start Guide
Paper
E2: (English, German, French, Italian, Dutch, Spanish,
Swedish, Polish, Russian)
E3: (English, French, Spanish)
E1C: (Simplified Chinese)
JP: (Japanese) - Remote Controller Yes
- Battery Yes (AAA x2)
- Power Cord Yes
