OVERALL
- Total Pieces 4
- Remote Deluxe Remote
- Remote Type Infrared (IR)
-
Included Accessories
• (1) 6.5’ (2m) high-speed HDMI cable
• (1) 6’ (1.8m) Optical cable
• (1) 6’ (1.8m) 3.5mm AUX cable
• (1) Deluxe Remote
• (2) AAA Batteries
• (2) Sound Bar wall mounting brackets (screws and fasteners not included)
• (1) Sound bar wall mount template
• (1) SR1 Wall Mounting Template
• (1) Sound bar power adapter with 6.5’ (2m) power cord
• (1) Subwoofer power cord
• (2) SR1 Power Adapters and Power Cords
• (1) Quick Start Guide
• (1) Registration card - Original Purchaser Only Yes
- Carton 1 21.38" (54.31 cm) h x 46.06" (116.99 cm) w x 15.27" (38.79 cm) d -
- Electronics Warranty 1 years
- Drivers Warranty 3 years
- Total Pieces 4
- Remote Deluxe Remote
- Remote Type Infrared (IR)
-
Included Accessories
• (1) 6.5’ (2m) high-speed HDMI cable
• (1) 6’ (1.8m) Optical cable
• (1) 6’ (1.8m) 3.5mm AUX cable
• (1) Deluxe Remote
• (2) AAA Batteries
• (2) Sound Bar wall mounting brackets (screws and fasteners not included)
• (1) Sound bar wall mount template
• (1) SR1 Wall Mounting Template
• (1) Sound bar power adapter with 6.5’ (2m) power cord
• (1) Subwoofer power cord
• (2) SR1 Power Adapters and Power Cords
• (1) Quick Start Guide
• (1) Registration card - Original Purchaser Only Yes
- Carton 1 21.38" (54.31 cm) h x 46.06" (116.99 cm) w x 15.27" (38.79 cm) d -
- Electronics Warranty 1 years
- Drivers Warranty 3 years

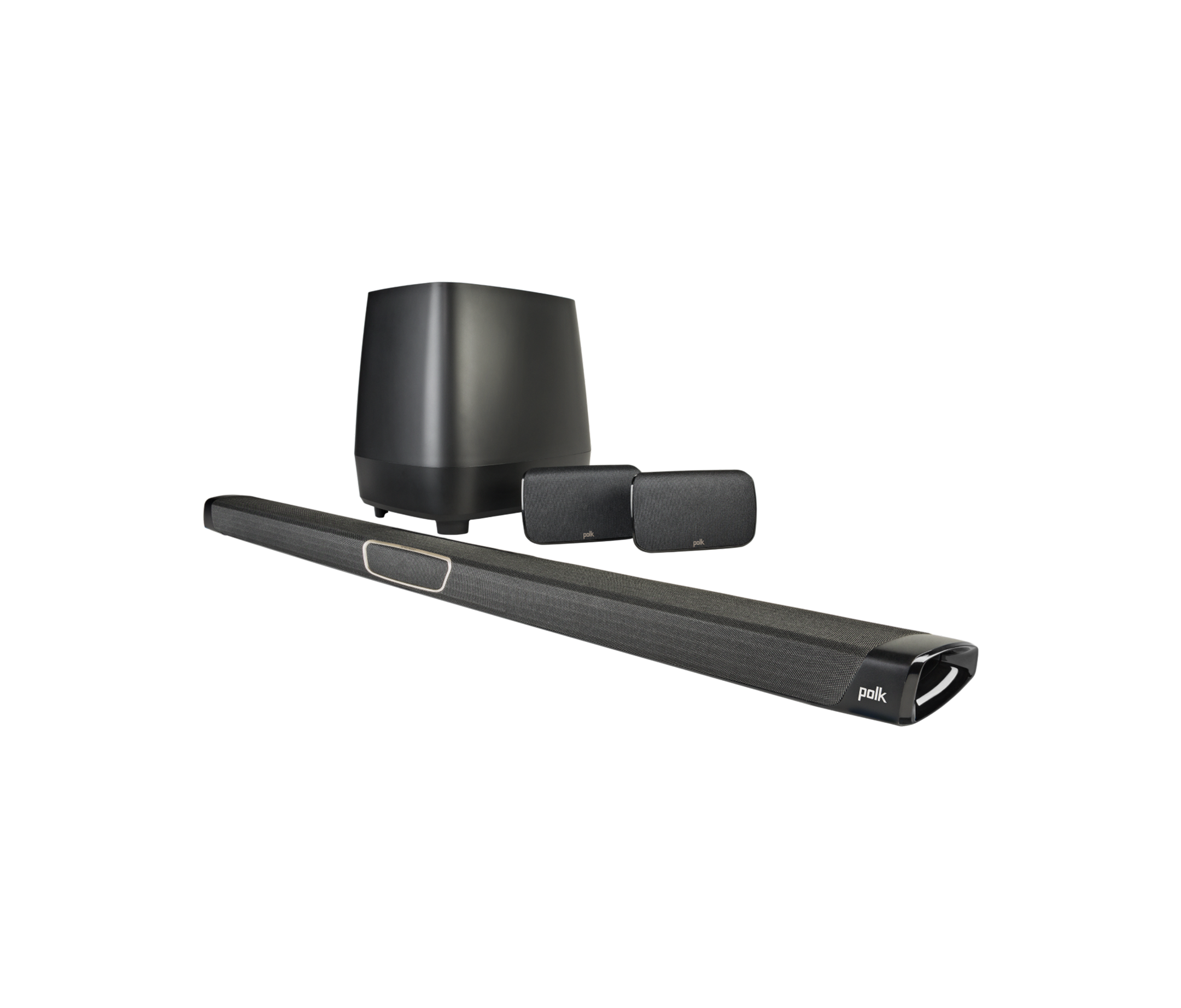

TOTAL SYSTEM
- Peak Power 400W (Sound Bar: 180W, Subwoofer: 160W, Surrounds: 60W)
- Frequency 35Hz - 20kHz
- Peak Power 400W (Sound Bar: 180W, Subwoofer: 160W, Surrounds: 60W)
- Frequency 35Hz - 20kHz

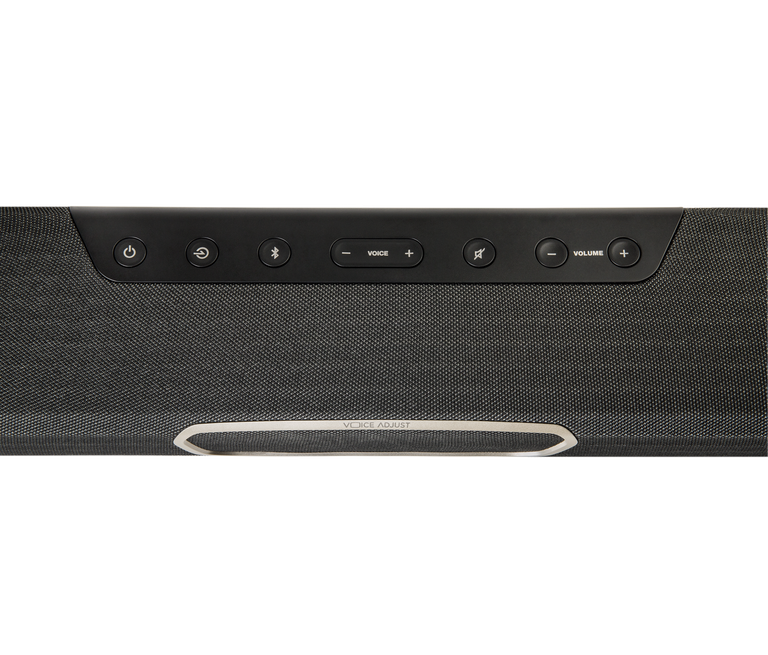

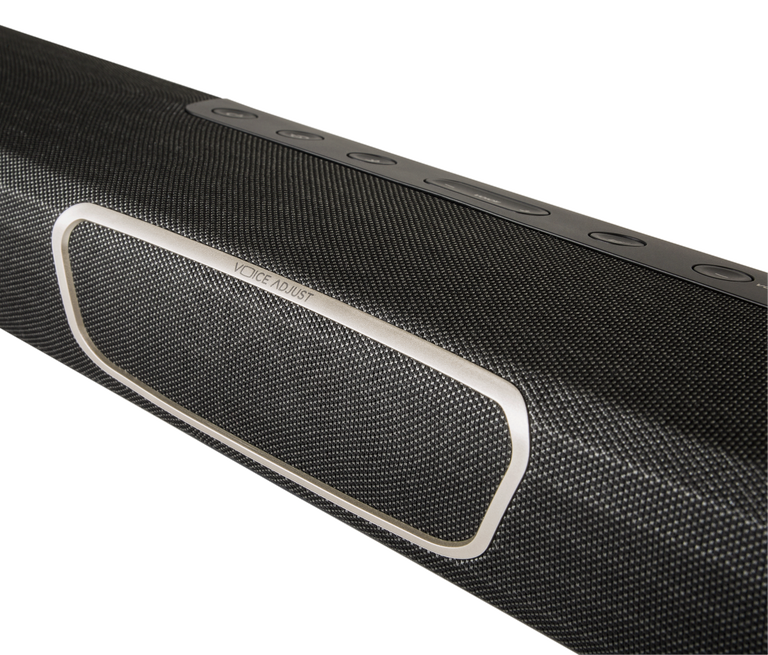

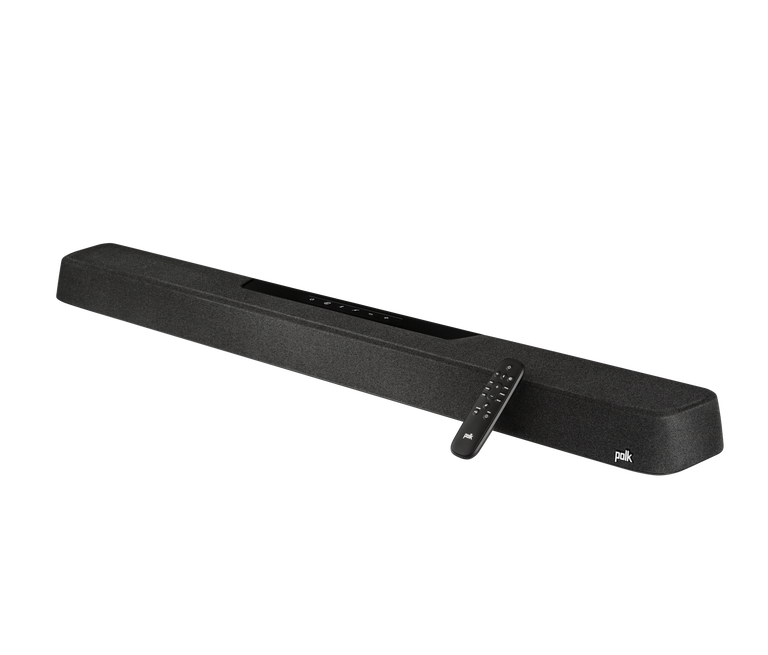

MAGNIFI MAX SOUND BAR
- Qty Included 1
- Height 2.09" (5.31 cm)
- Width 43" (109.22 cm)
- Depth 3.78" (9.6 cm)
- Weight 6.05 lbs (2.74 kg)
-
Driver Complement
• (4) 1" (2.54 cm) h x 3" (7.62 cm) w (Oval) - Mid/Woofer
• (2) 0.75" (1.91 cm) d (Round) - Tweeter
• (1) 1" (2.54 cm) d (Round) - Midrange - Bluetooth Yes
- Wireless Yes
- Wireless Protocol 802.11 a/b/g/n/AC - 2.4 GHz & 5 GHz
- Mounting Type Flush-Mount Wall Bracket
- Available Orientations Horizontal
-
Audio Inputs
• (3) 4K HDMI
• Toslink Optical
• Analog 3.5mm Mini-Jack (AUX) -
Video Pass-through
• 4K HDMI
• HDR
• Dolby Vision - Ethernet Yes
- Google Cast Yes
- Audio Outputs • HDMI (ARC)
- Qty Included 1
- Height 2.09" (5.31 cm)
- Width 43" (109.22 cm)
- Depth 3.78" (9.6 cm)
- Weight 6.05 lbs (2.74 kg)
-
Driver Complement
• (4) 1" (2.54 cm) h x 3" (7.62 cm) w (Oval) - Mid/Woofer
• (2) 0.75" (1.91 cm) d (Round) - Tweeter
• (1) 1" (2.54 cm) d (Round) - Midrange - Bluetooth Yes
- Wireless Yes
- Wireless Protocol 802.11 a/b/g/n/AC - 2.4 GHz & 5 GHz
- Mounting Type Flush-Mount Wall Bracket
- Available Orientations Horizontal
-
Audio Inputs
• (3) 4K HDMI
• Toslink Optical
• Analog 3.5mm Mini-Jack (AUX) -
Video Pass-through
• 4K HDMI
• HDR
• Dolby Vision - Ethernet Yes
- Google Cast Yes
- Audio Outputs • HDMI (ARC)

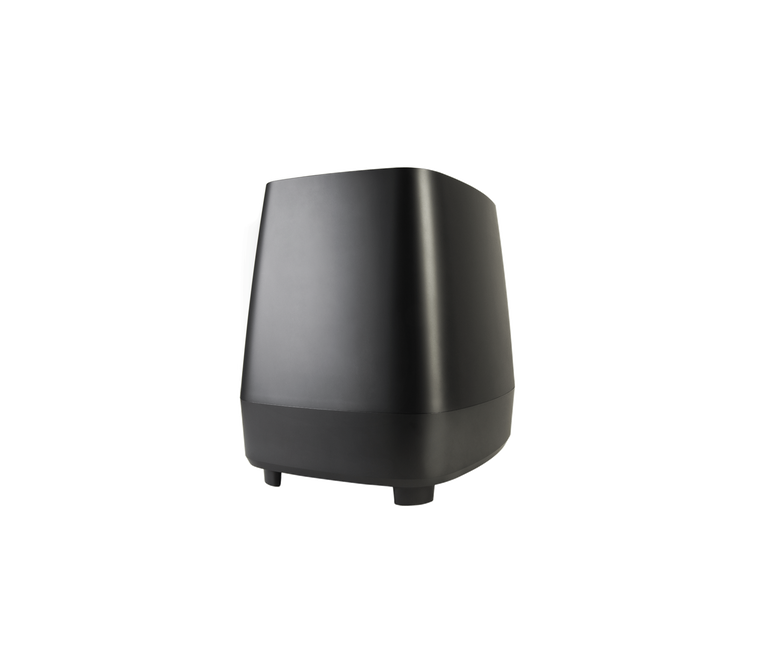

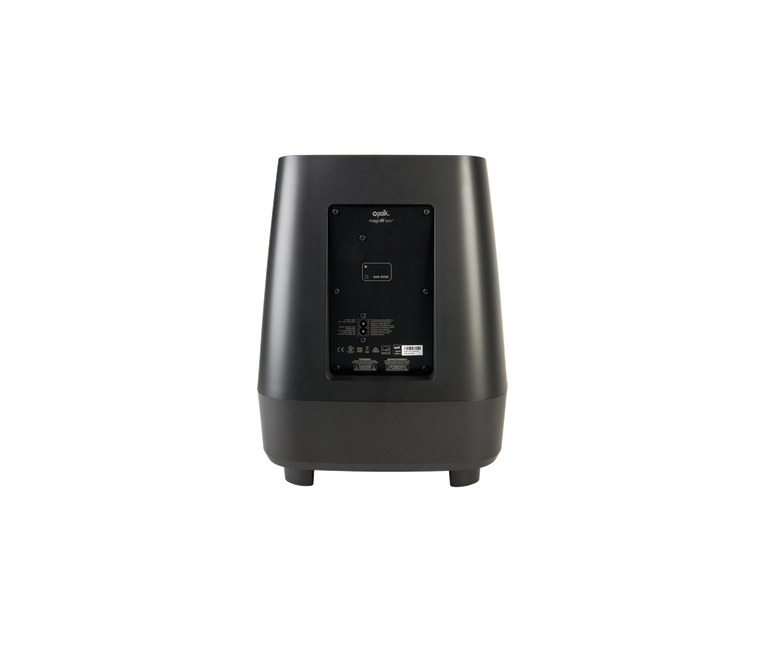

SUBWOOFER
- Qty Included 1
- Height 14.54" (36.93 cm)
- Width 14.62" (37.13 cm)
- Depth 12.11" (30.76 cm)
- Weight 13.5 lbs (6.12 kg)
- Subwoofer Array Driver Enclosure Type Ported
- Subwoofer Array Driver Complement • (1) 8" (20.32 cm) d (Round) - Subwoofer
- Qty Included 1
- Height 14.54" (36.93 cm)
- Width 14.62" (37.13 cm)
- Depth 12.11" (30.76 cm)
- Weight 13.5 lbs (6.12 kg)
- Subwoofer Array Driver Enclosure Type Ported
- Subwoofer Array Driver Complement • (1) 8" (20.32 cm) d (Round) - Subwoofer

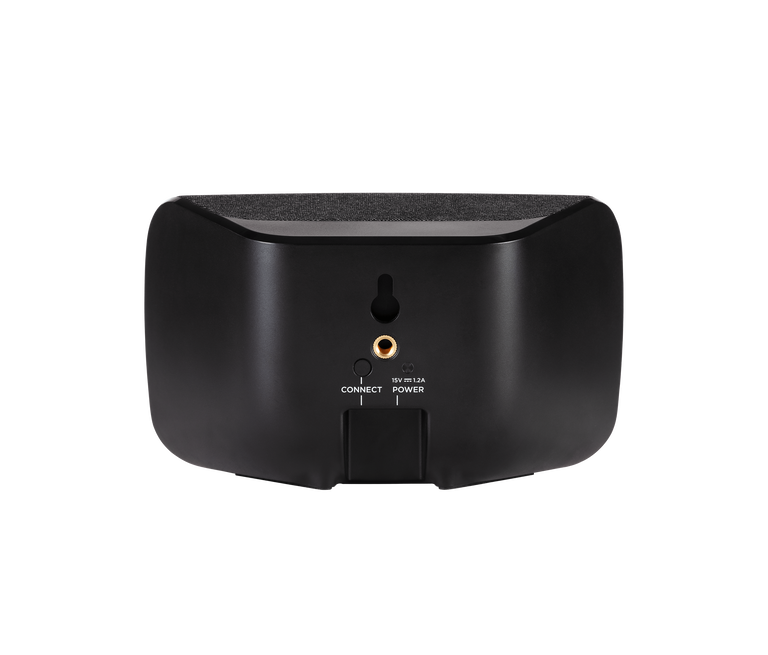

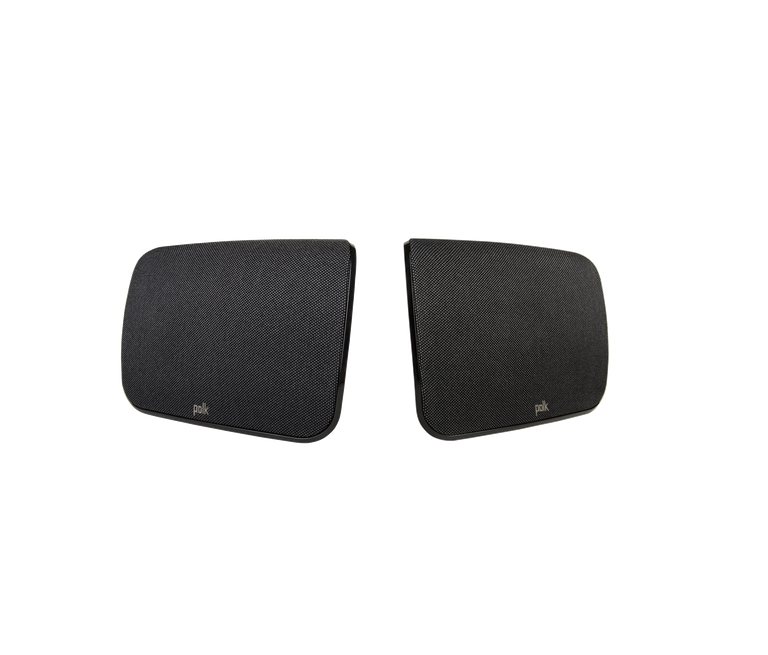

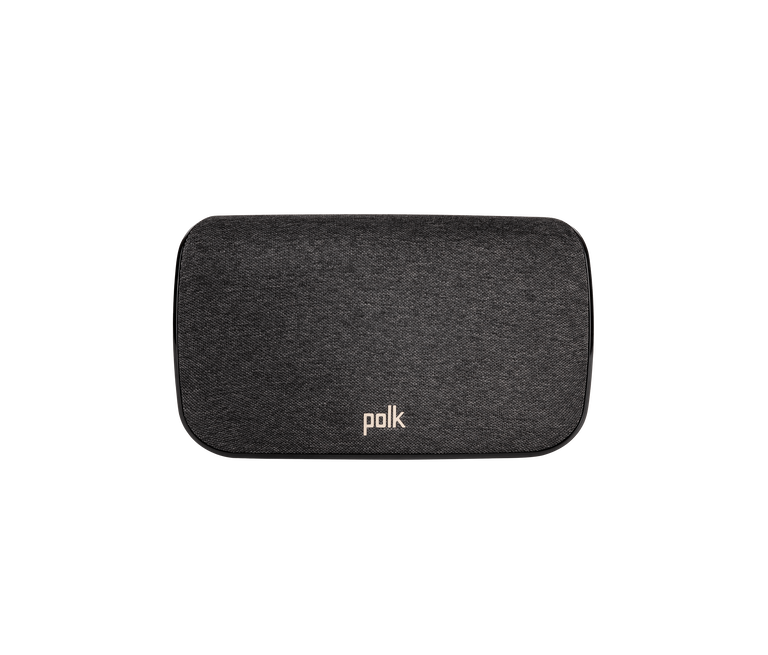

SR1 WIRELESS SURROUND SPEAKERS
- Qty Included Pair
- Orientation Horizontal
-
Rear Array Driver Complement
• (1) 3" (7.62 cm) d (Round) Left Rear Surround - Mid/Woofer
• (1) 3" (7.62 cm) d (Round) Right Rear Surround - Mid/Woofer. - Mounting Type
- Available Orientations Horizontal
- Mounting Type 1/4 in - 20 Threaded Insert and Keyhole Hanger
- Available Orientations Horizontal
- Audio Inputs
- Speaker Inputs Wireless streaming from the MagniFi MAX sound bar system
- Qty Included Pair
- Orientation Horizontal
-
Rear Array Driver Complement
• (1) 3" (7.62 cm) d (Round) Left Rear Surround - Mid/Woofer
• (1) 3" (7.62 cm) d (Round) Right Rear Surround - Mid/Woofer. - Mounting Type
- Available Orientations Horizontal
- Mounting Type 1/4 in - 20 Threaded Insert and Keyhole Hanger
- Available Orientations Horizontal
- Audio Inputs
- Speaker Inputs Wireless streaming from the MagniFi MAX sound bar system
